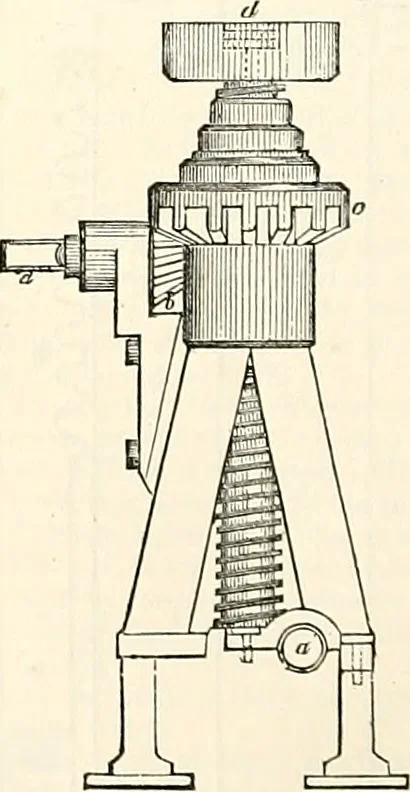

hown at fig. 2417, side elevation; fig.2418 end elevation, and fig. 2419 section through veitical screw. The lift of this jack is effected by means of a crank, or lever, applied to the axis o, which works thebevel-geer b c, the latter geer being cut on the projecting face of the nut c ; the…
