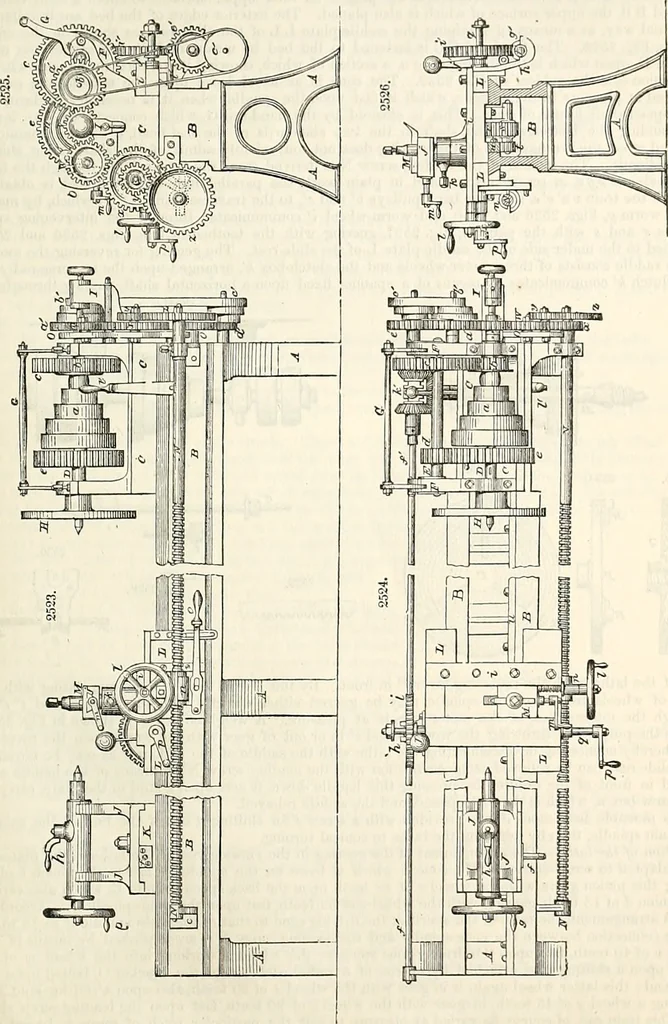

LATHE. 193 LATHE, SMALL SELF-ACTING AND SCREW-CUTTING, by Charles Walton, Leeds, Eng Fig 2523 is a general side elevation of the lathe, and Fig. 252t is a plan corresponding. Fig. 2525 is an end elevation showing the geering. Fig. 2526 is a transverse section taken between the fast-head and the… … ■Jigs. 2527, 2528, 2529, 2530, show details of the geering for working the slide-rest. Fig. 2231 is an elevation of the top cone and driving pulleys: these consist of two sets, the smalleT«et being used for reversing the motion of the saddle when the lathe is employed in screw-cutting, andthe…
