Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 214

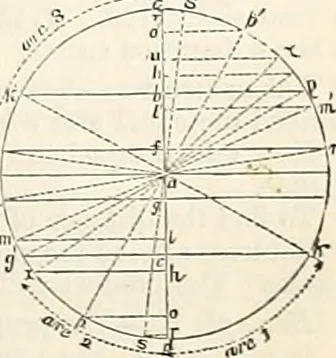

o thoextent of the lead 6 h, equal to c A, and the piston will have completed its descent. Steam continues to enter the port b e during the ascent of the piston, until the eccentric reaches tha point k, when the port be will be reclosed. Fig. 2576, the direction of the slides motion being downward,… … •210 LAP AND LEAD OF THE SLIDE-VALVE. 2573. 2574. 2575. ft^ftufe,
Mechanical engineering · Mechanics · Engineering
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
