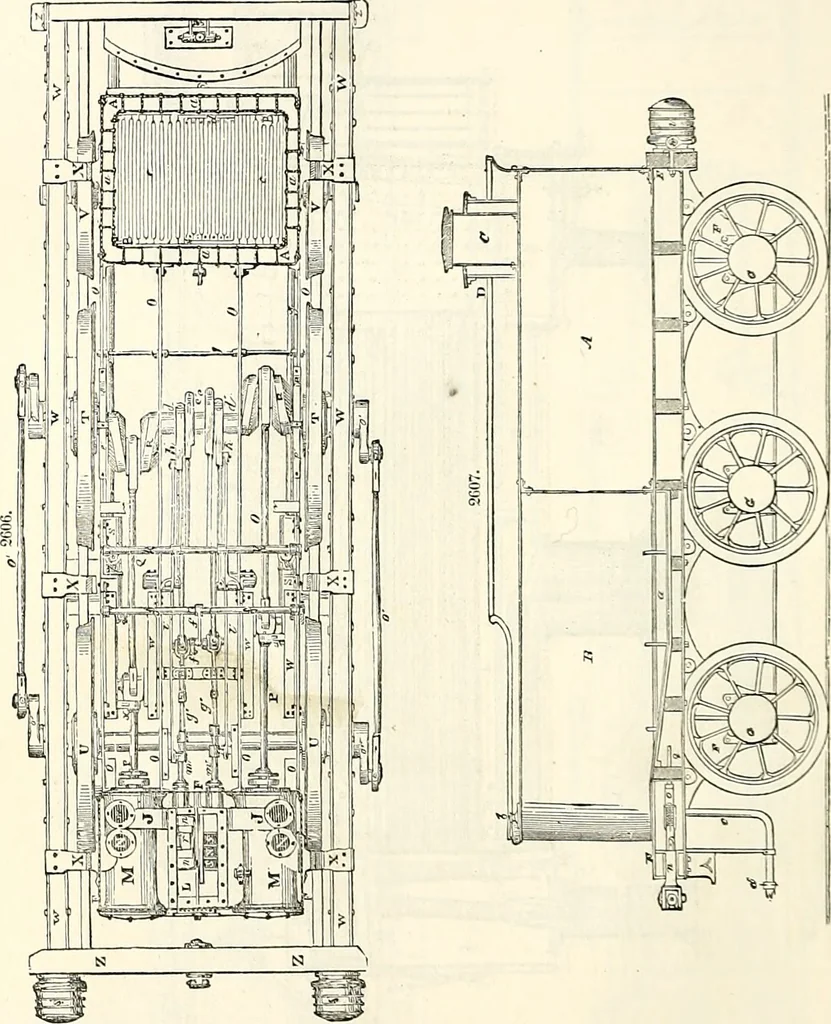

parts of the engineand tender as could not be fully shown in combination: Fig. 2613, a transverse section of the steam regulator and chest; Fig. 2614, a longitudinal section o(the same. Fig. 2615, a plan of the piston, with the cover removed to show the packing. Fig. 2616, a section of the piston… … Fig. 2619, a side view of the same.Fig. 2620, an end view of the same.Fig. 2621, an elevation of the backward eccentric. Fig. 2622, a plan of the same, showing the stud for working the expansion-geer.Fig. 2623, a side view of the reversing or coupling link. Fig. 2624, an edge view of the same,…
