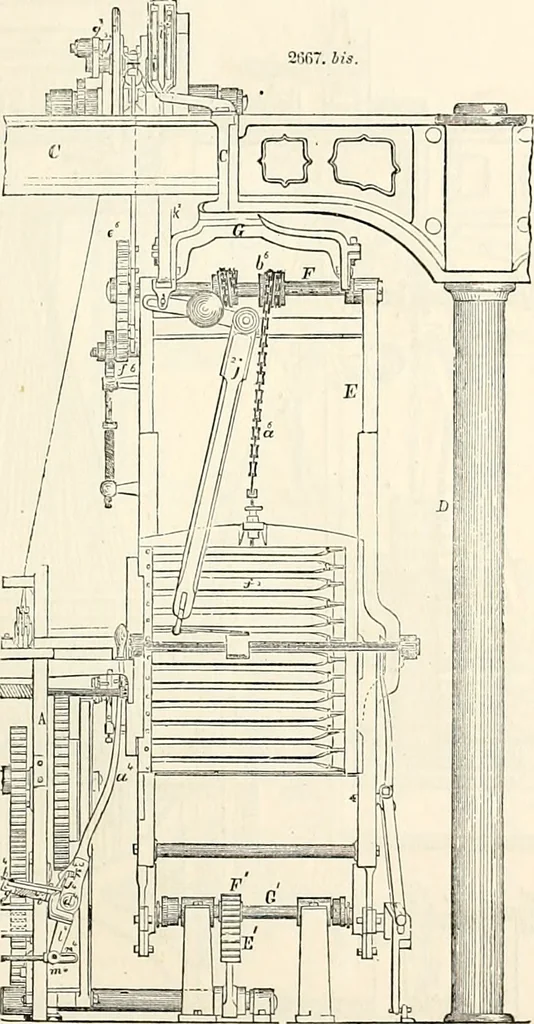

e jacquard-frame resting on beamsC C C C, supported on columns D from the main floor. The pendulous frames E E, which carry tlie series of shuttle-boxes, are arranged on each side of thelathe, and independent thereof, and are hung on arbors F F, at the top, on whicli they vibrate. Theseframes are… … je lu line with the race-beam of the lathe when one shuttle is thrown, and vice vena for the next ttirowAnd these motions are obtained from a cam A on the main cam-shaft B of the loom, which acts on anarm C^ of a rock-shaft D that extends across the loom. This rock-shaft carries at each end a…
