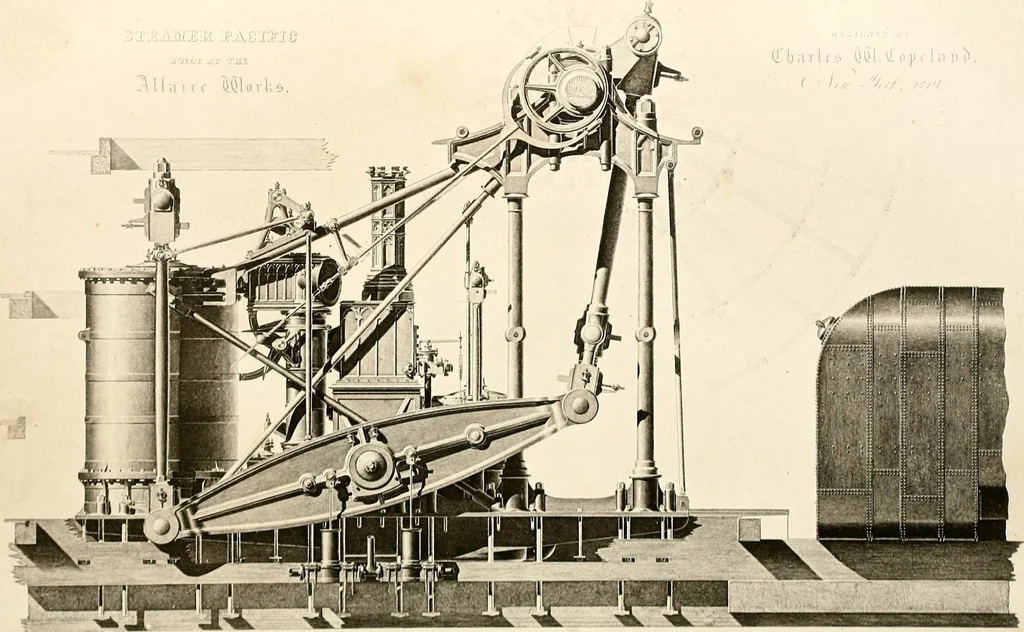

r and lower exhaust passages. U, the condenser, cast of a piece with the sole-plate. V, the au--pump cylinder, lined with brass. II, the air-pump side-rods.It, the air-pump cross-head. !. guides for the air-pump cross-head. W, the feed-pimip. X, the hot-wea Y, the discharge-pipe. Z, the air-vessel.… … MARINE STEAM-ENGINE. 345 », (in plan of sole-plate) the part of the hot-well I x, the fixed lever of the expansion-geer. to which the feed-chest is bolted. y y./, additional levers for working the expansion. w, the movable lever of the expansion-geer. i valve. American Marine Steam-Enc/ine.—Section…
