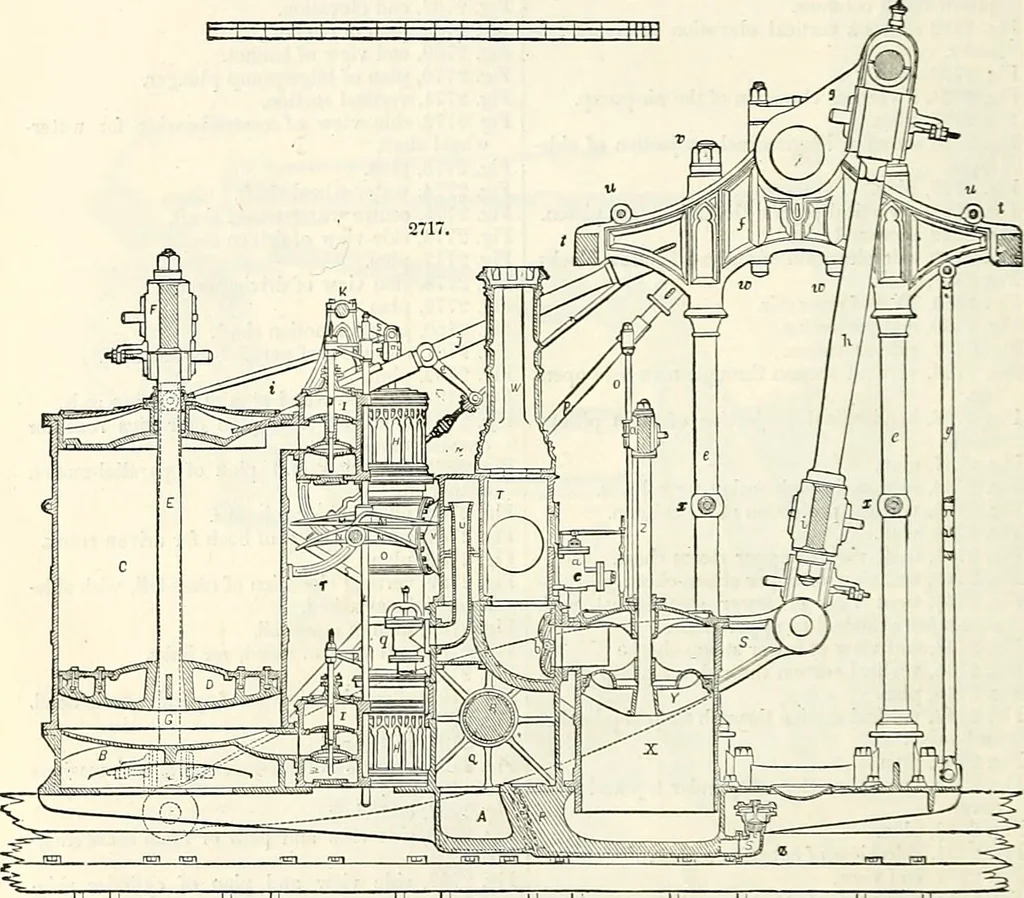

into sockets cast upon the bed-plate./, pUlow-blocks for water-wheelshafts.g, cranks.h, main connecting-rod, connecting cross-tail and crank-pin.i, cross-tail, attached to the side-levere by two short links, also the main connecting-rod._;, main-braces from pillow-blocks to cylinder.k, steam-valve… … TTIT D T 11 C iJ u S, side-levers. T, hot-well U, injection-pipe. V, connection, from exhaust-pijxi to condenser. AV, au--column, to receive the air arising from the waste water, thereby faciUtating its discharge.X, air-pump.Y, air-pump piston.Z, air-pump rod.o, air-pump cross-head.b, delivery…
