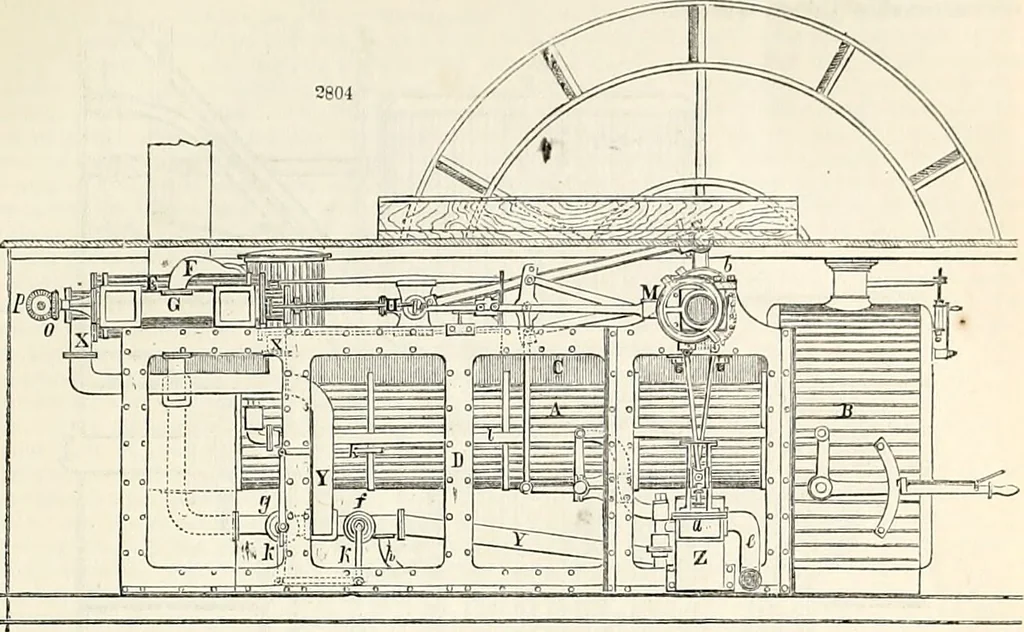

team of the previous stroke having escaped hy the opening cast inthe middle of the cylinder, and through similar recesses formed in the valve T. into the blast-pipe W.Kow it is to be remembered that the valve U must travel downwards until its port leading into the cyl. MARINE STEAM ENGINE. 357… … Scale 4 feet to 1 inch. to the blnst-pipe—which are only hnlf the mdth of the valve—are closed, the other valve S opens, andthe remaining vapor escapes through the pipes X, cast on the steam-chest, to the pipe Y, leading to thecondenser Z. As the expansion at each stroke commences at the face of…
