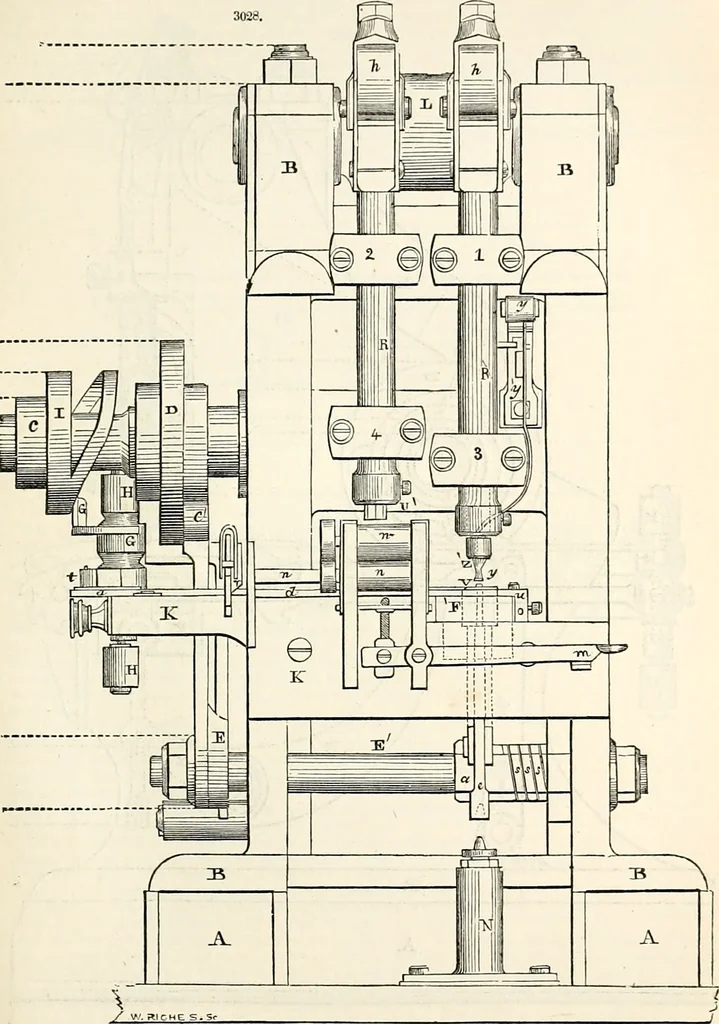

eed-cam c, which operates the feed-lever /, and through the double hands P P, works the ratchets PERCUSSION-CAP MACHINE. 469 r r of the feed-rollers. On the opposite face of this collar is the cam c of the elevator lever E E, which,through the rocking-arbor E and arm a, raises the elevator e,… … G G, Ac, cam lever of the transfer apparatus. It is fast on its axis J J, which works in the bracketHH, (fee, and is operated by the cylinder cam I on the crank-arbor, and returned by a spiral spring onthe axis J J. Tlie lever 11 is free on the axis J J, but is constrained to move in concert with…
