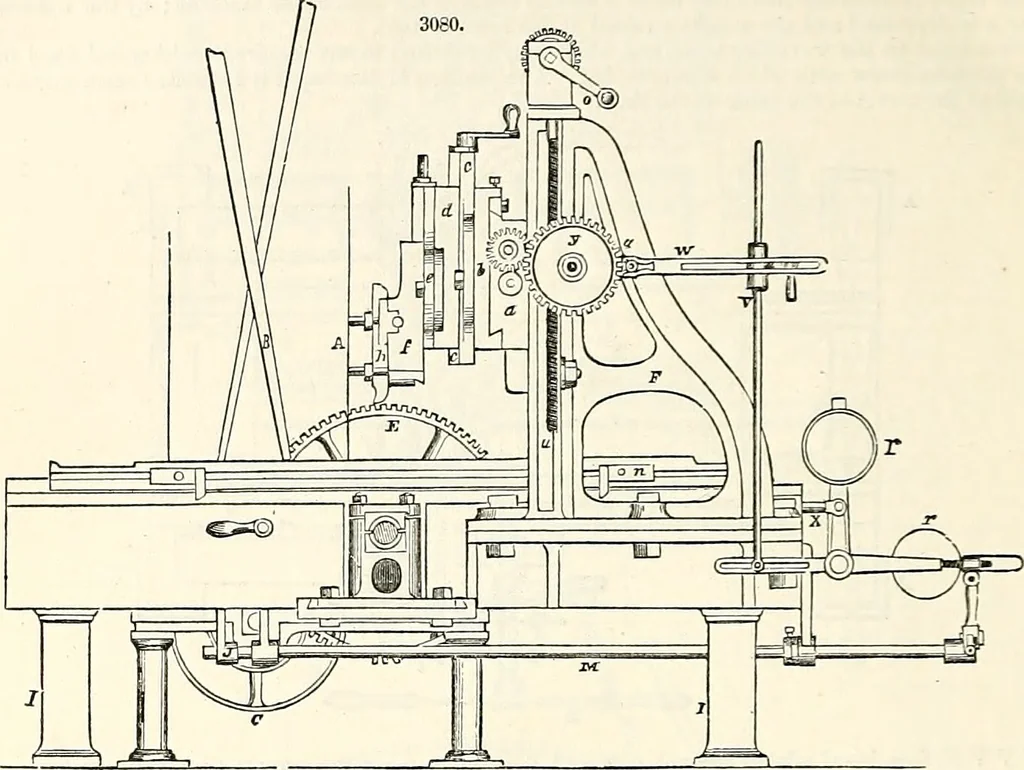

ichcanies the weights r r, and has its other end attached to a lever keyed on the same hollow shaft witbdouble lever 7. M, a traverse-shaft connected bv a lever with the shaft to which the lever / s attached. 504 PLANING MACHINE. J, a lever fast on the shaft M; and C, Fig. 3080, a guide for the… … The machine is set i.n motion by moving the belt-guide towards the offside of the machine, by ■whichme belt is shifted on the narrow pulley, which is the driver. The sliding table is thus put in motion,atio. <noTes towards the back part of the machine, until the tapet 71, catching one of the…
