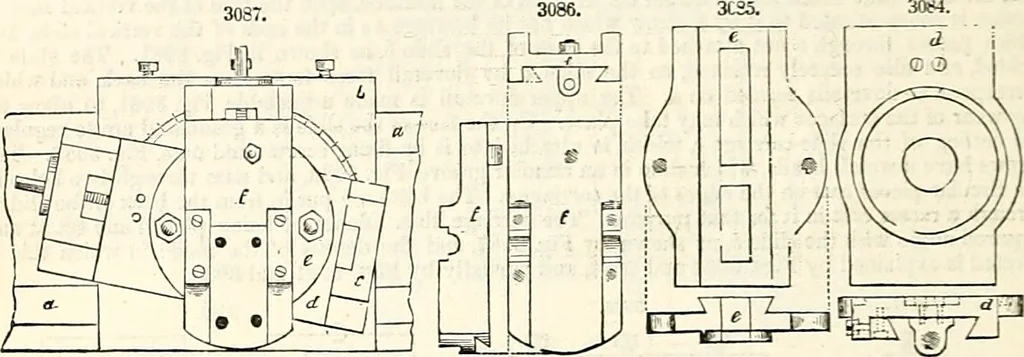

lever (with the lever w. The spring-catch being in geer, the wheel y receivesmotion from the lever i, and being geered with a pinion on the end of the cross slide-screw, which revolves in bearings « s, it communicates its motion to the screw and cross-slide b. The amount of feed isadjusted by… … This selfacting feeding motion is also communicated to the down cutting slide d by shifting thepinion from the end of the screw to the end of the small shaft which works in the bearings g q. Fig. SOSiiOn this shaft is a small bevel-wheel sliown at Figs. 3081 and 3082, whicli is carried round by…
