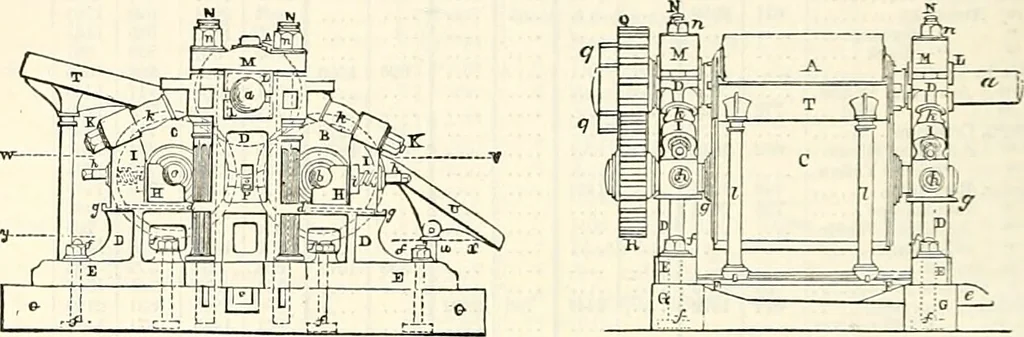

with horizontal cylinders, which is not only cheaper in.construction and more easilyfixed, but by its use the process of feeding is performed with much less Libor, and at the same timemore efficiently. Fig. 3365 represents a front elevation of the entire mill, showing the form of the framing, and… … Fig. 3367 is a half-sectional plan taken on the line v^ic, in Fig. 3365. Fig. 3368 is a similar half-section taken on the line x—tf. Fig. 3369 is a vertical transverse section, through the centre of the mill, exhibiting the form of sectionof the framing or standards, and the internal construction…
