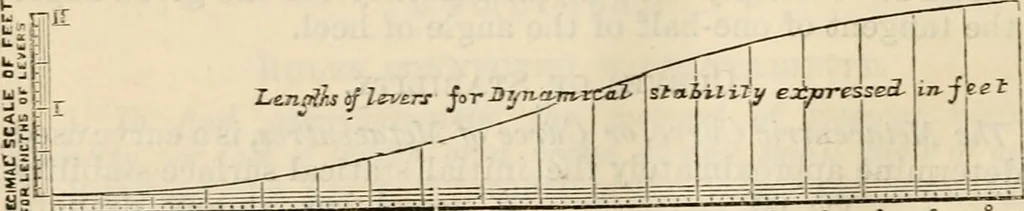

e theabscissEe of which represent to scale the respective angles ofheel: a curve bent through the extremities of these ordinateswill form a curve of statical stability. The CuT^ve of Dijnamical Stability is constructed in a similarmanner to that of the curve of statical stability-, with the… … i m 15» za 25° soas -^o ^s so ss so ss la 7S ao as so SCALE or BiCCBEES FOR ANCLE OF HEEL Curves of Statical and Dj/namical Surface Stability are alsoconstructed in a similar manner to the foregoing cmves, thelengths of the arms br and bi-bh (see fig. 131) being taken asordinates for the respective…
