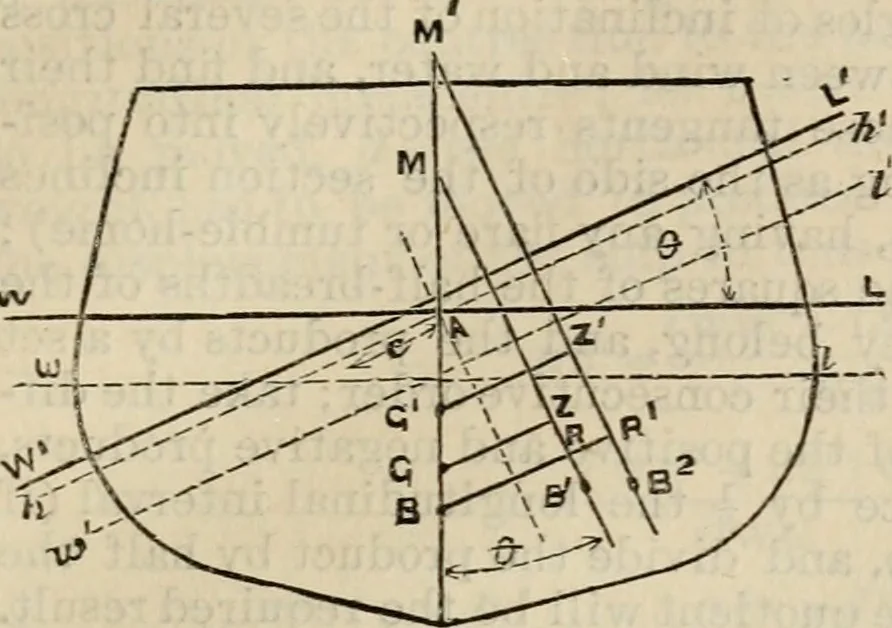

give the length of the arm for djTiamicalstability and not the moment. Example (see fig. 133).—To find the length of the armfor dvnamical stability, at an angle of 30^ inclination. Ansrles of Heel 0 degrees 5 „ 10 „ 15 „ 20 „ 25 „ 30 „ Lengths of Statical Simpsons Products Levers GZ Multipliers •0… … 13. Curve of Stahility for Light Bravglit.—The lengths of thearms for this curve can readil}- be approximated from the resultsobtained for the curve in the load condition. Fig. 137. In fig. 137 WL is the load water-line, and nlthe light water-line, forthe upright position ofthe vessel. If the…
