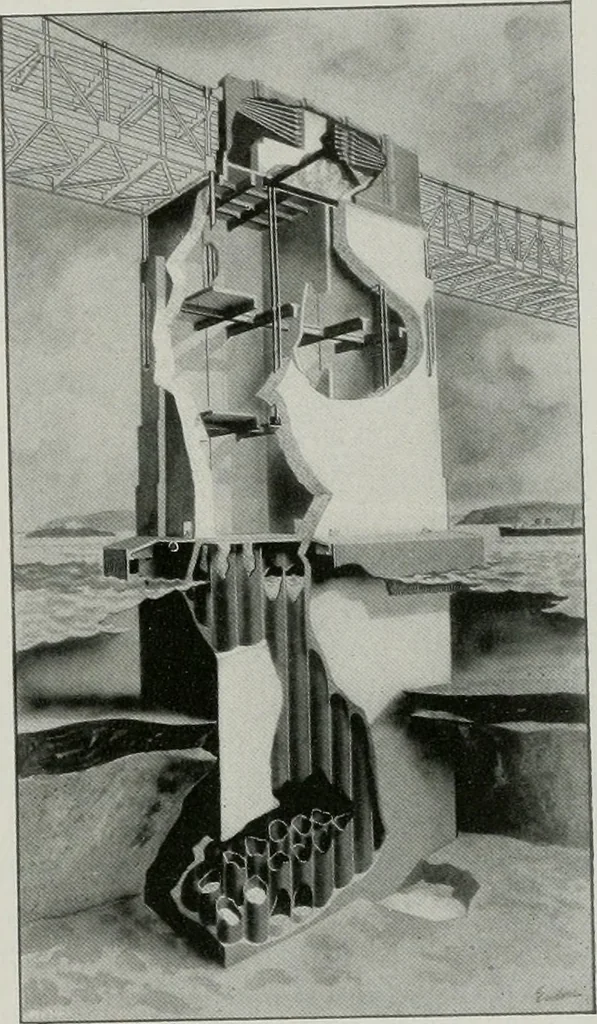

sewalls are anchored the steel A framesto which are tied the 38 eyebars connect-ing to the 37 strands of each cable. The cables, comprising 17,464 wires,divided into 37 strands of 472 wires each,are 28M inches in diameter. Each cablesplays out into 37 strands inside the an-chorage and attaches to a… … the injury to ships. The fender is fittedwith timber to withstand the impact ofsmall boats. The highest elevation of the concretecenter anchorage is 281.76 feet atop thesteel hood. The lowest elevation of theanchorage is 222.4 feet, zero in each casebeing Standard Lower Low water whichis a plane…
