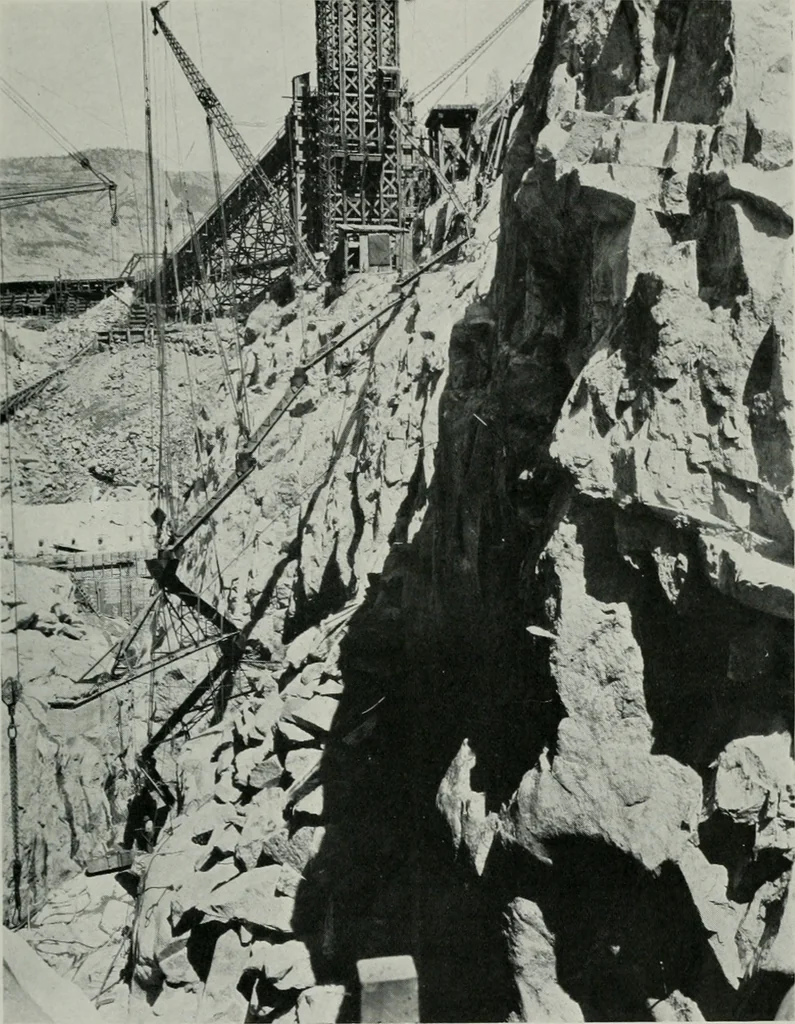

ic cylinder operation.A heavy reinforced concrete shutter may be lowered through a slot inthe wall of the outlet structure to close the opening on the up-streamside of the slide-gate, thus providing access to the gate for inspectionor repairs. The maximum measured flood flow of the Tuolumne River… … GENERAL VIEW OF SOUTH SIDE AND BOTTOM OF DAM SITE The river is by-passed around the dam site through a tunnel 23 ft.high. 25 ft. wide and 900 ft. long. The lower group of three 3 ft. 6 in.outlet conduits will be placed later in this tunnel. The diversion dam is a rock-filled crib 321 ft. long, of…
