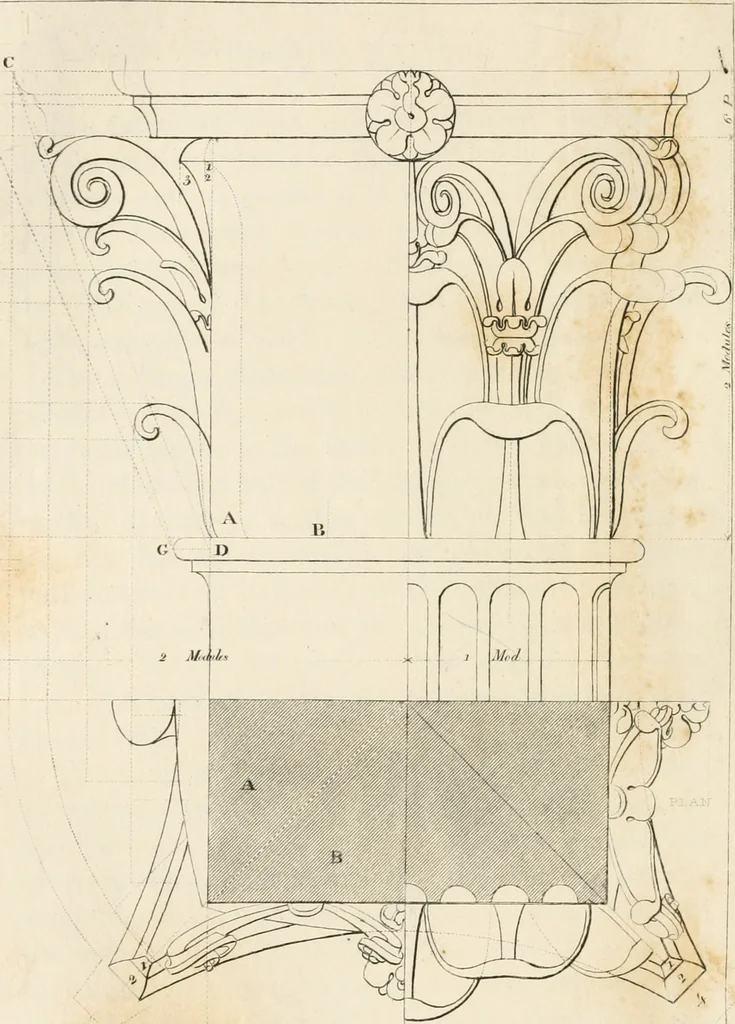

us has thesame diagonal projection, and a line from this point tothe extremity of the astragal determines that of theleaves and volutes at the angles. The border of thevase diminishes on the sides, so as to relieve the lar^evolutes. The projection of the volutes at the anglegives also that of the… … --u-+-^ t^^^-4it A COMPARATIVE TABLE OF THE GENERAL PROPORTIONS OF THE COMPOSITE ORDEK, FROM THE MOST CELEBRATED EDIFICES OF ANTIQUITY, TOGETHER WITH THOSE ASSIGNED TO IT BY THE MOST EMINENT MODERN MASTERS. Arch of Titusat Rime. Arch ofSeptimus Sercat Rome. ..s ThernuB of Dioclesian,at Rom^.…
