Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 146

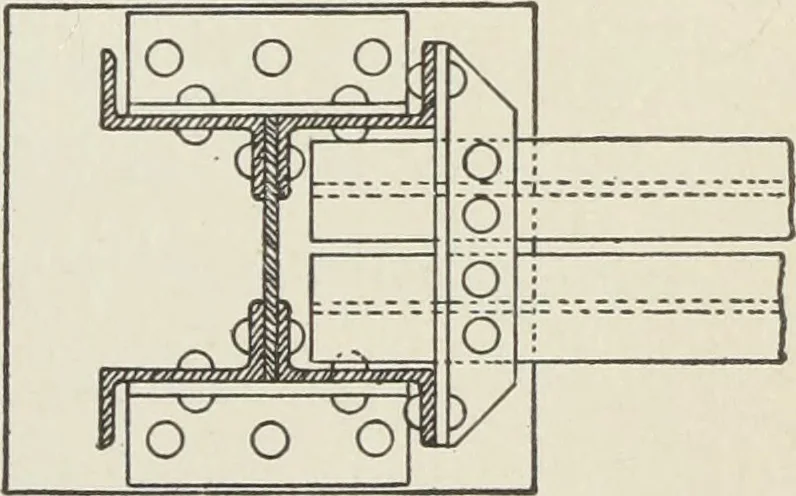

it, the solution proceed-ing as before. 4. Convenient Connections.—Thisfeature in column construction isa very important one. Satisfac-tory details can easily be madefor almost any of the sections,where the beams are symmetri-cally placed and loaded, and whereall occur at the same elevation ;but… … Fig. 75. 128 ARCHITECTURAL ENGINEERING. plates and angles. The connection in Z-bar columns formsone of the greatest advantages in the use of this section;and in the smaller columns without covers, where the con-nections are generally the most difficult, the advantagesare the greatest. The general…
Building, Iron and steel
