Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 162

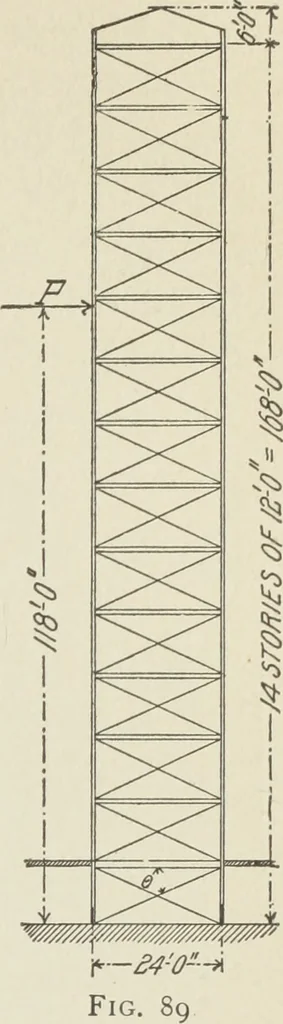

ss-section of the building, n bays not adjacent are braced by means of diagonal rods, the tension P PhT becomes T. — —1 sec 6, and V, = —V. The bracing in Fig. 85 may easily be analyzed in amanner similar to the above. The highest building in the city of Chicago is theMasonic Temple, 273 10 from… … i44 ARCHITECTURAL ENGINEERING. suit halls and doorways. In this building the sway-rodswere not connected to the floor-beams themselves, but tospecial I beams placed between the columns and just belowthe floor system. In The Fair Building, system i was used, but withlattice girders from column to…
Building, Iron and steel
