Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 62

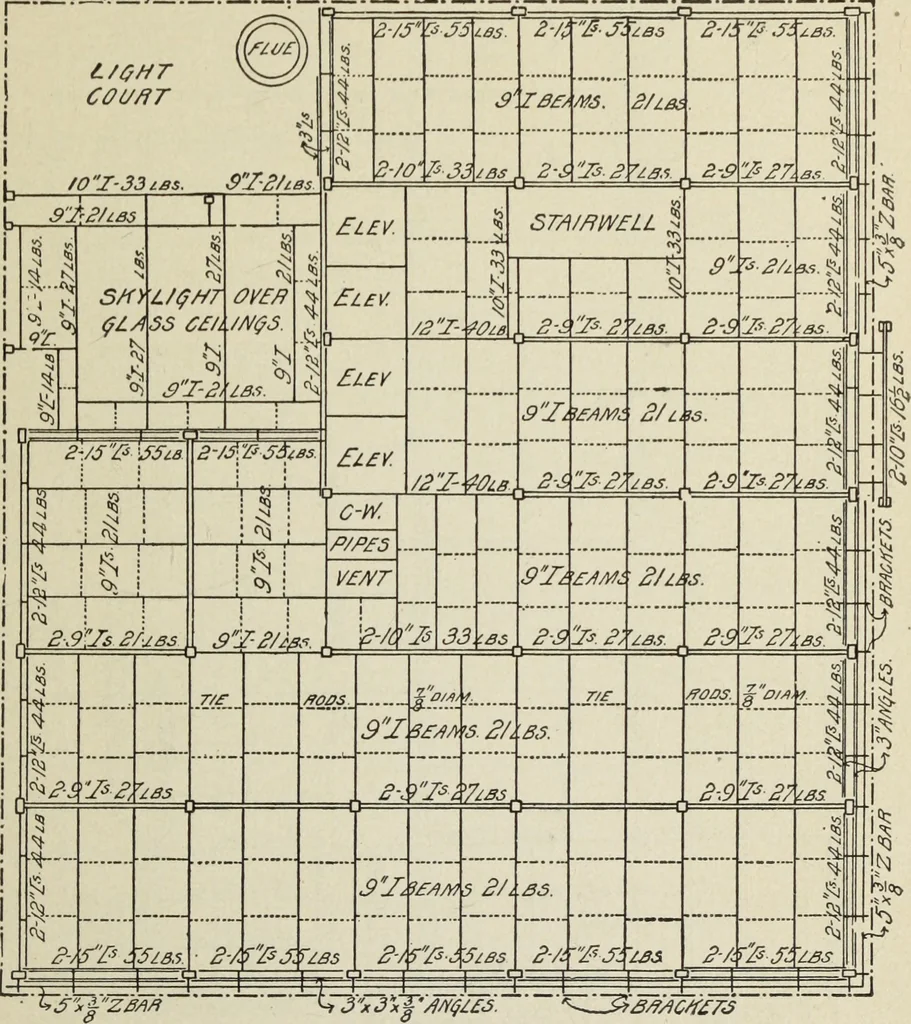

Fig. 17.—The Old Colony Building. Holabird & Roche, architects. SKELETON CONSTRUCTION. 43 It is comparatively seldom that complete detail plansfor the steelwork of a building are made by the architect.Still less frequent are the cases where such detail planscould be used as actual shop drawings… … Fig. 18.—Typical Framing Plan of the Fort Dearborn Building. as in nearly every case the manufacturer much prefers tomake his own shop drawings, to conform to the usage ofhis own plant. The architect has generally been contentto specify the sizes and weights of the material to be used, 44…
Building, Iron and steel
