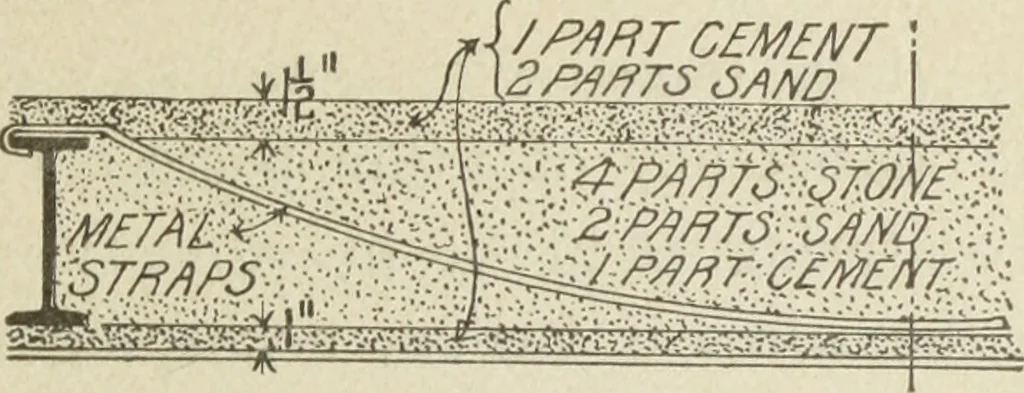

An illustration from Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings, 1895, leaf 88 — Natural Sciences, inPhiladelphia, and in the Alumni Building of RensselaerPolytechnic Institute at Troy. This form of flooring,shown in Fig. 35, consists of I-beam girders spaced8 o to 18 o centres as may be required, betweenwhich are hung steel straps at intervals of from 12 to 24, FLOORS AND… … Fig. 35. cement filling is used, embedding the straps and girders.If the beams are of considerable depth, the soffit of thearch may show the panelled beams, as in Fig. 36. The HOOK
