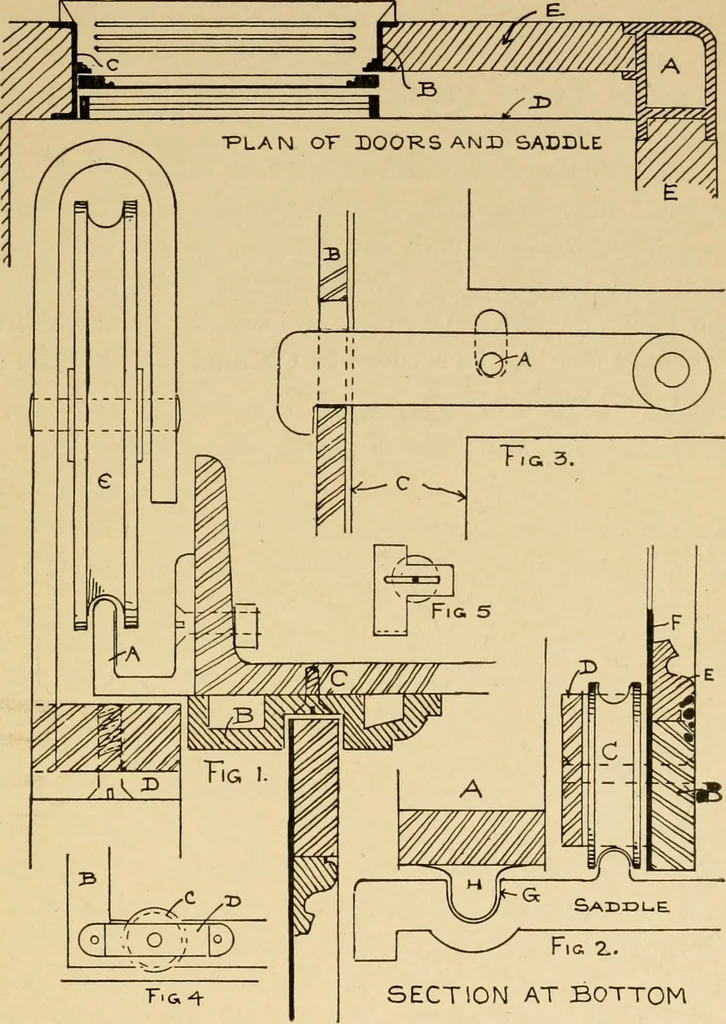

ide for the outer door. The section of saddle and bottom of both doors is shown inFig. 2. A is a section through frame of inner door, with aprojecting pin H acting as a guide in the groove G. B is a sec-tion through frame of outside door, which is made of plainsheet iron {F) and cast-iron moulding… … Fig Z. SECTION AT BOTTOM To secure the outer door when closed, a slot is cut into thechannel jamb as shown in Fig. 3. B is the channel, C the doorframe, and A a pin for raising the latch. 94 ARCHITECTURAL IRON AND STEEL. To secure the inner door, the same lock and buffer are usedas explained for…
