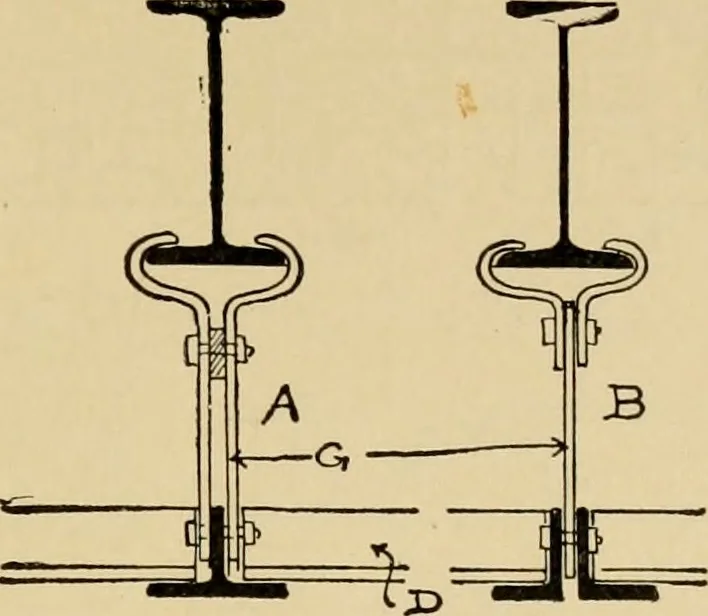

ERS. 125 are used, the small T irons B are generally placed 25 inchesapart between centres. If wire cloth or wire lathing is used,they may be much lighter and be four feet apart. The T-ironand double angle-iron principal supporting bars are usuallymade of 3 X 2 X iV mch angles, and are placed about… … F /ix zete /H smaller T irons passing through them and secured on every third bar with -^-inch-diameter bolts. A simpler and more economical manner of arranging theprincipal supporting bars, if wire lathing is required, is tosecure the hanger to a single angle iron and bolt to this, andflat under…
