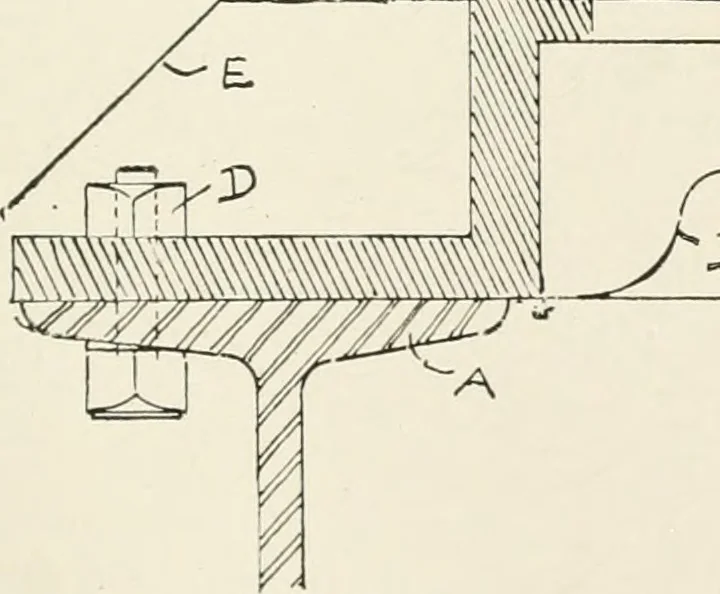

but the frame is slotted as shown atsection E—F, to receive the principal bearing bars, which areof wrought iron. 102 FLOOR LIGHTS AND SKYLIGHTS. 103 Riveted to each side of these bearing bars, for a rebate, arel X 2 strips, as section C—D, with y\-inch-diameter rivets [^ 1: 0II 1 . \-^ W II 3 1…
