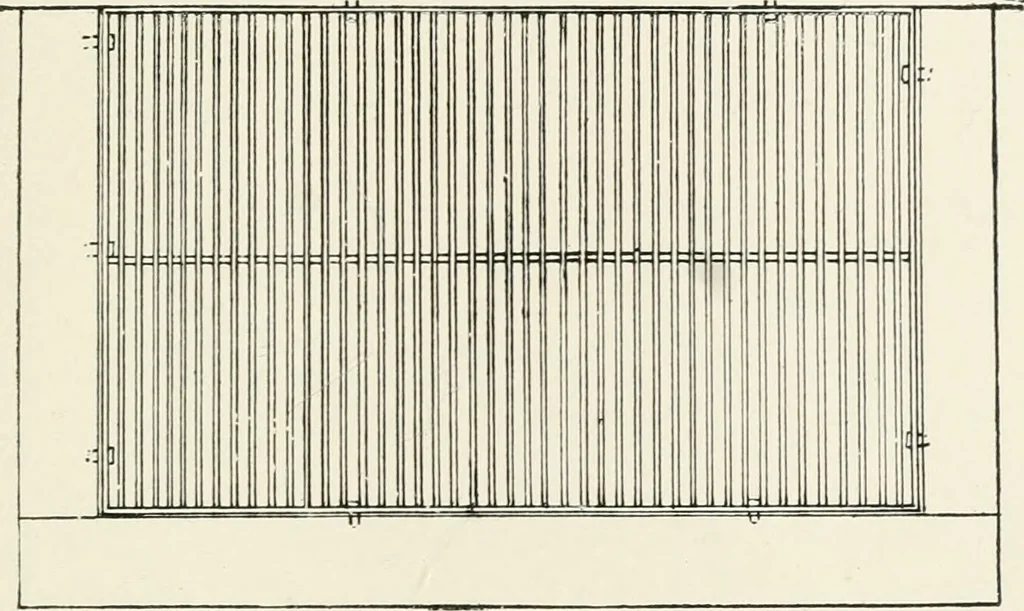

K worked by the lever arm L prevents any sudden fall-ing of the platform. The framework is 4 feet high by 3 feetlong by 22 inches wide. The crank arms extend 14 inches oneach side, beyond the width of frame. In setting the framework care should be taken that the WROUGHT-IRON GRATINGS. 129 platform…
