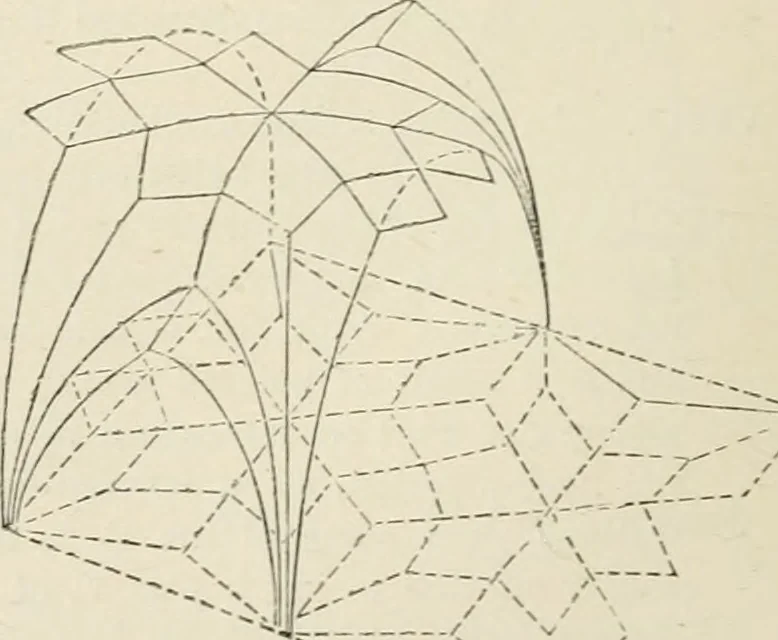

Fig. 9 ^.—VArLT.s. GLOSSARY OF TECHNICAL WORDS. XXxix is not true. No. 3 represents a similar compartment vaultedwithout any distortion or irregularity by the help of the pointedaich. No. 4 represents one lay of a sexpartite Gothic vault.No. 5 represents a vault with lierne ribs making a…
