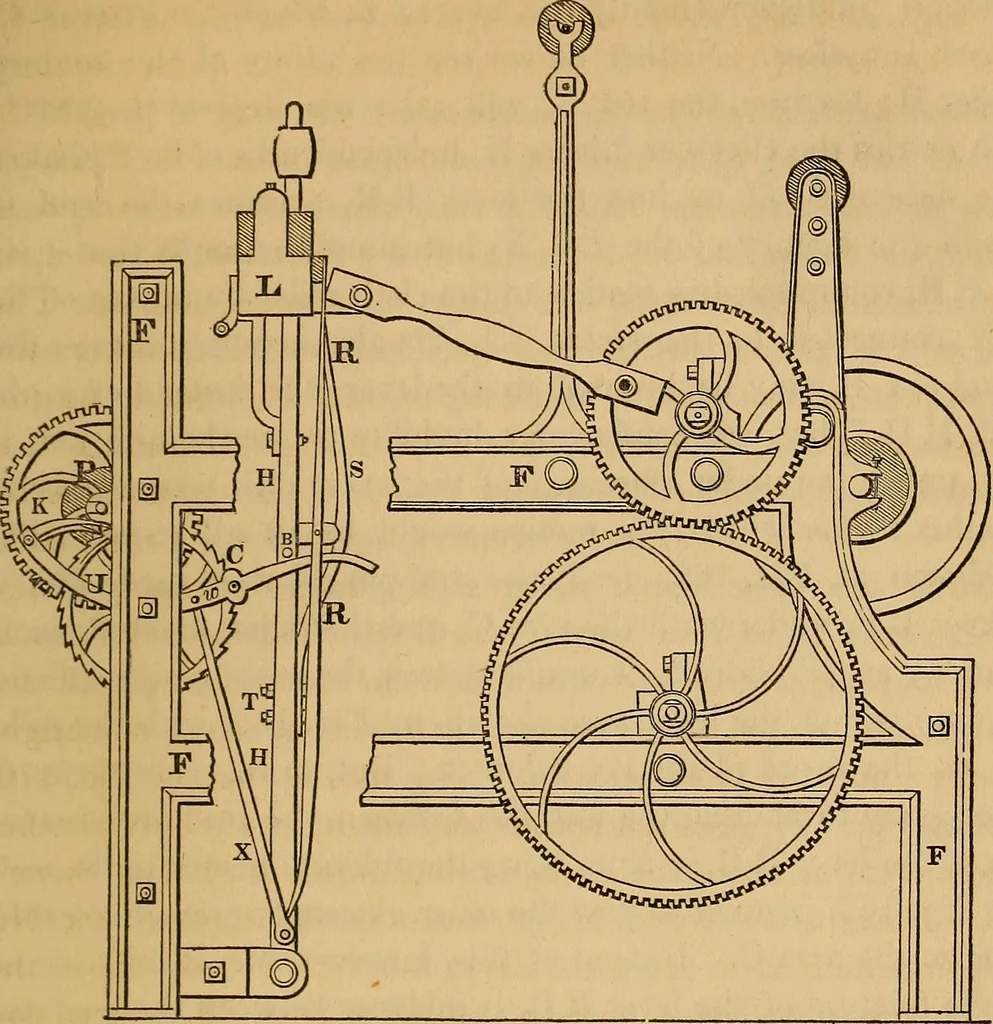

quite as applicable. F F F F, is the frame of the loom ; H H, the sword of thelay ; R R, the lever which receives motion from the vibrating reed,and is the same as that marked Q., in Figs. 165,166,167 and 168,n,n, in Fig. 169, and C, in Figs. 170 and 171. The lever RR, inthis loom is made to beat… … shown at Fig. 169.) L, is the lay; B, a small friction roller orstud-pin fixed on the side of the lay, hke that above the letter y^ inin Fig. 169; except that in this case it is turned upside down, forsome purpose best hiown to Mr. H. himself. The arm C, beingacted upon by the roller B, will, of…
