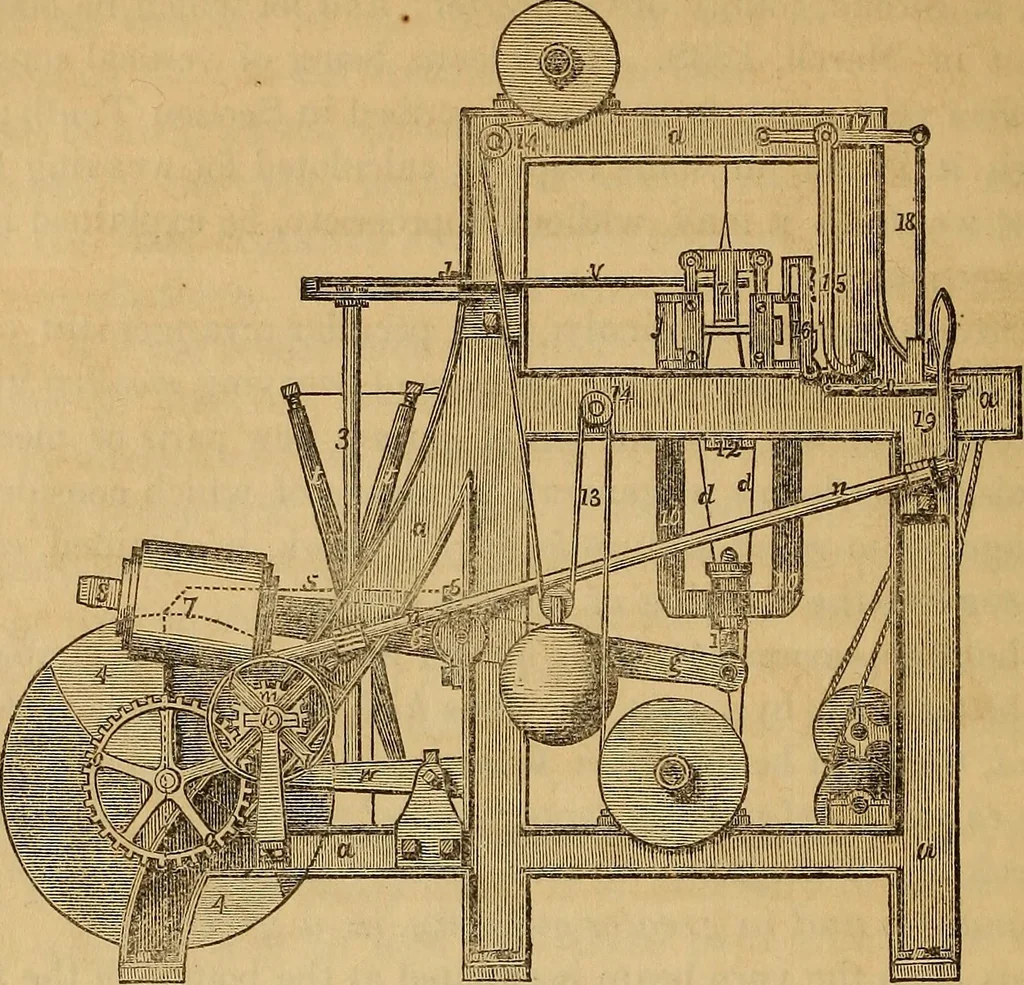

to the cam shaft, any degree of Impulse can begiven to the lay without causing an undue strain upon the warpthreads, and with much greater effect upon the cloth than can beobtained by the best hand weaving. In Order to illustrate Mr. Fletchers improvements in the construc-tion of looms, and that… … Fig. 180, is a side view of tiie loom ; Fig. 181, a plan view ;Fig. 182, a back.view ; and Fig. 183, a section, taken through themiddle of the machine, showing the position of the warp and theapparatus for working the headles. The side frames, in which the ordinary parts of the loom aremounted, are…
