The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 177

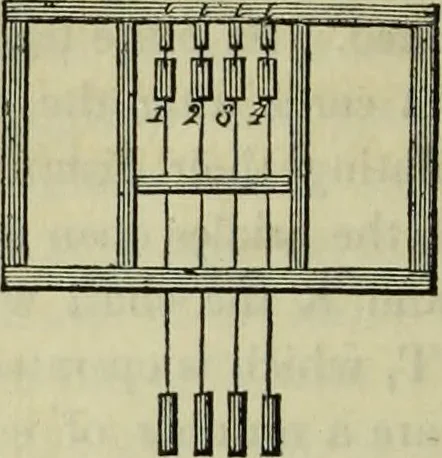

or levers, in which is fastened the hook a1 for pulling downthe lash. The two parts a1 and b, as seen in Fig. 75, are openedby cords connected to the treadles when they are in the position tocatch the head of the lash, but shut again by their own gravity, asin the Fig. before the lash is pulled… … where 1, 2, 3 and 4, are the ends of the levers, and the small pul-leys i, have cords running over them, to recover the levers after thelash is drawn, h (Fig. 71) is the escapement for opening thehooks, and allowing one set of lashes to escape and another to en-ter. Q, (Fig. 71) is a roller…
Weaving
Internet Archive · Clark Art Institute Library · Public Domain Mark 1.0. Free to use for anything.
