The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 372

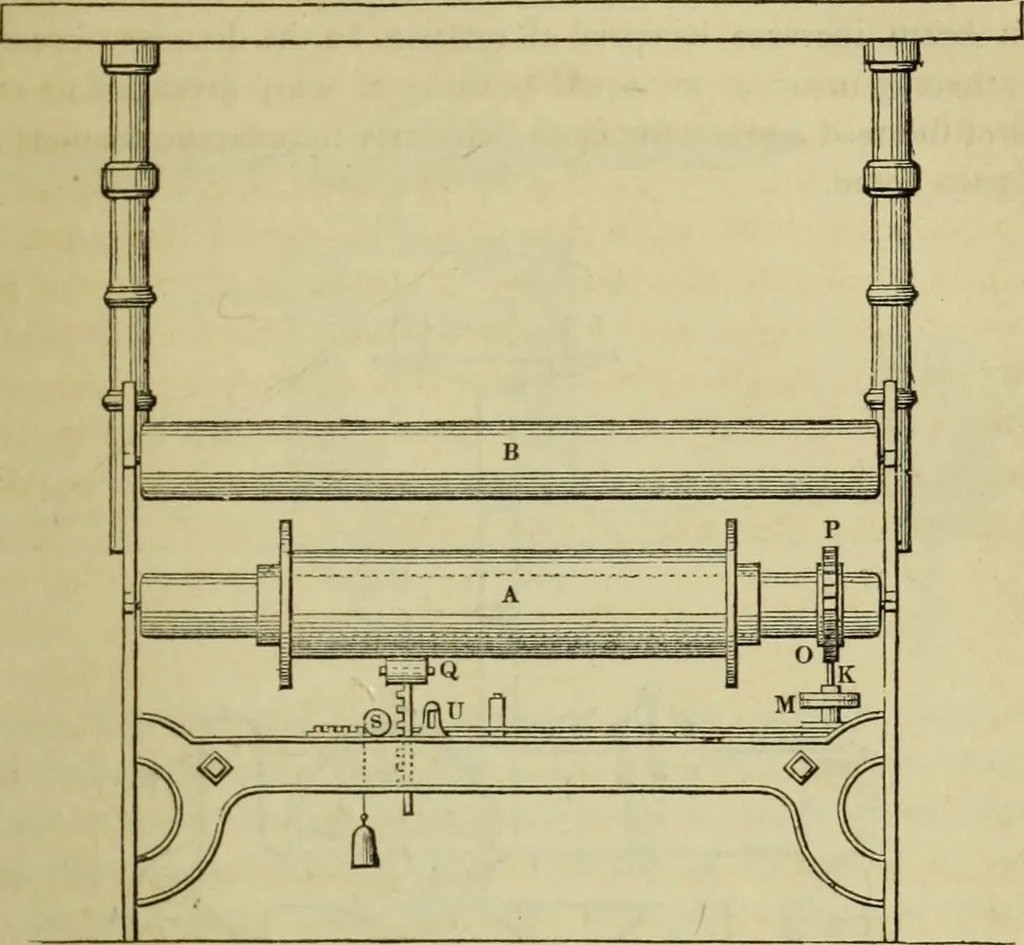

,bearing date Sept. 30th, 1838, prior to which date we tested the in-vention for over two years at M. Philippes machine shop, 19 RueChateau Landon, Paris, France. In these drawings the same letters of reference indicate the sameparts. Fig. 161, represents a back elevation of a loom of the… … The yarn beam A, is placed in the usual position, and containsthe warp which passes over the roller B : after the warp is wovenit passes over the breast beam C (Fig. 162) and is taken uponthe cloth roller D. On the shaft E (Fig. 163) is placed a cylindri-cal eccentric F F, which imparts alternating…
Weaving
