Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 181

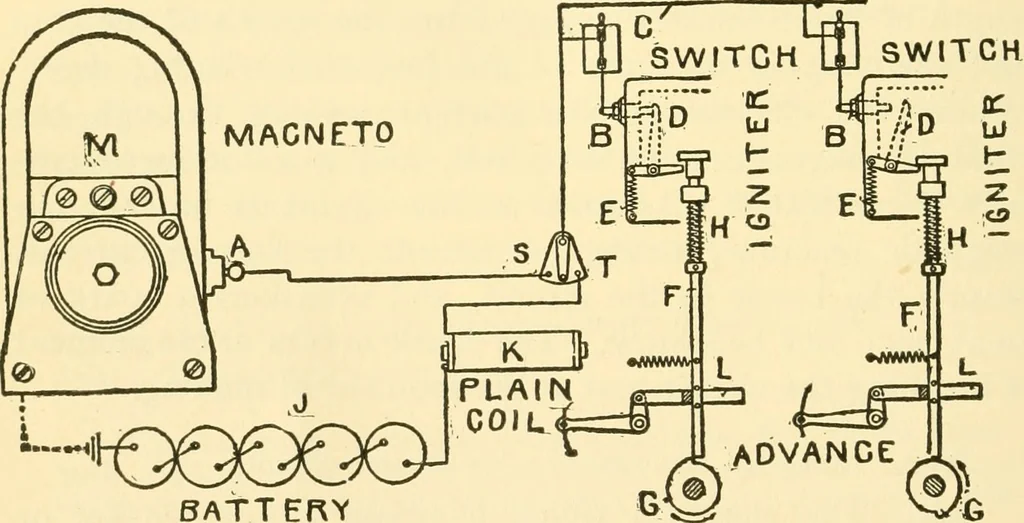

rom the battery or magneto, respectively, A conductor C connects the third point of the switch to thestationary or insulated electrode of each igniter, a single throwswitch being placed at each igniter, which allows either or bothcyhnders to be thrown out of the circuit at will. The movable… … ~-<x^^:^ BATTERY Fig. 66.—A low tension or make and break ignition system. In op-eration, as the nose of the cam G passes rod F, the latter suddenly dropsby the action of spring H. The head of the rod, which has been raised bythe cam somewhat above the arm of D, will, in its descent, strike D a…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
