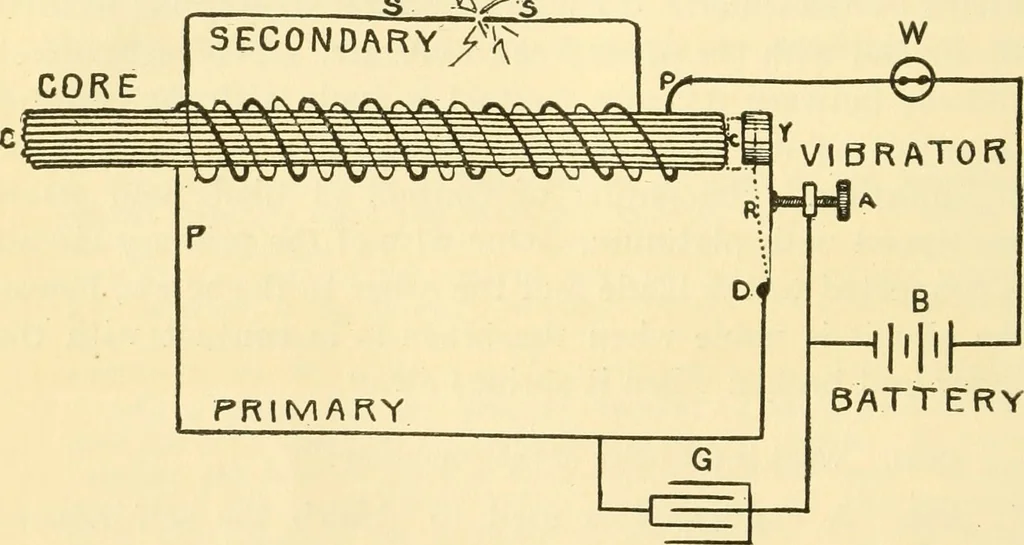

d closing the primary 166 A UDELS AaSWERS circuit; B is a battery of five cells. The point of the adjust-ing screw A rests against a platinum point R, solderedupon the vibrator. If the switch W be closed, the electric current generated bythe battery B, will flow through the primary winding. This… … CONDENSER Fig. 73.—Diagram of a vibrator coil. The parts are as follows: A,contact screw; B, battery; C, core; D, vibrator terminal; G, condenser; P,primary winding; S, secondary winding; W, switch; Y, vibrator. Whenthe switch is closed, the following cycle of actions takes place: 1, the…
