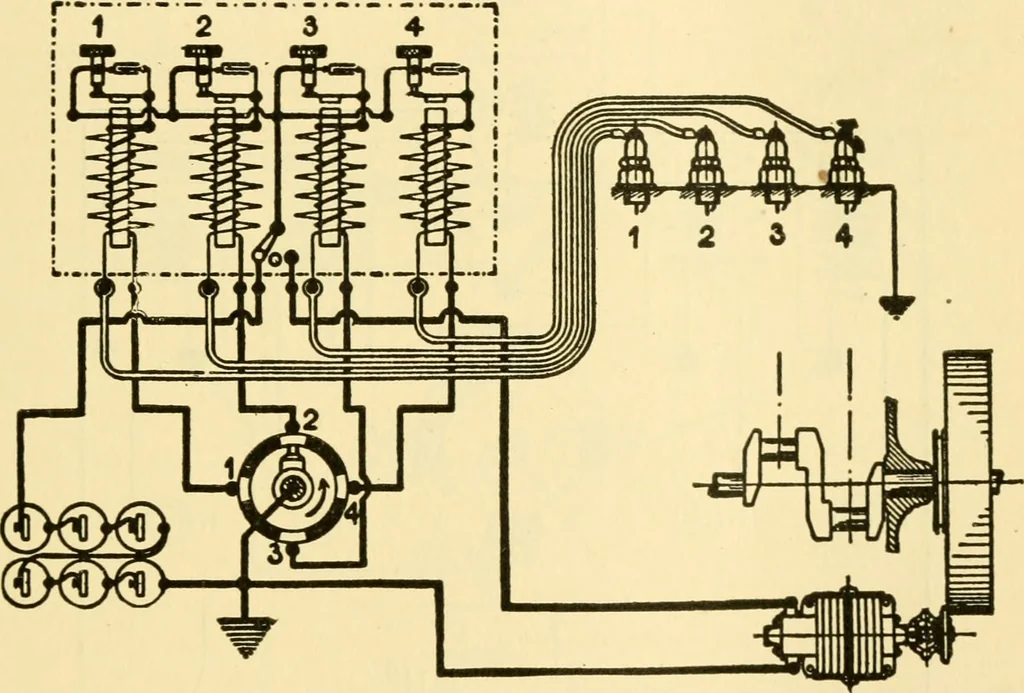

through the vibrator blade,primary winding of the coil, timer, and the metal of the en-gine, and returns to the battery. The primary circuit is IGNITION 187 alternately opened and closed with great rapidity by thevdbrator so long as the rotor of the timer is in contact withthe terminal. During this… … Fig. 105.—Wiring diagram of a dual jump spark system for a fourcylinder four cycle engine. A dry battery and low tension magneto formthe two sources of current supply. The primary, or low tension circuit, isshown by heavy lines, the secondary or high tension circuit by fine lines, andthe leads to…
