Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 262

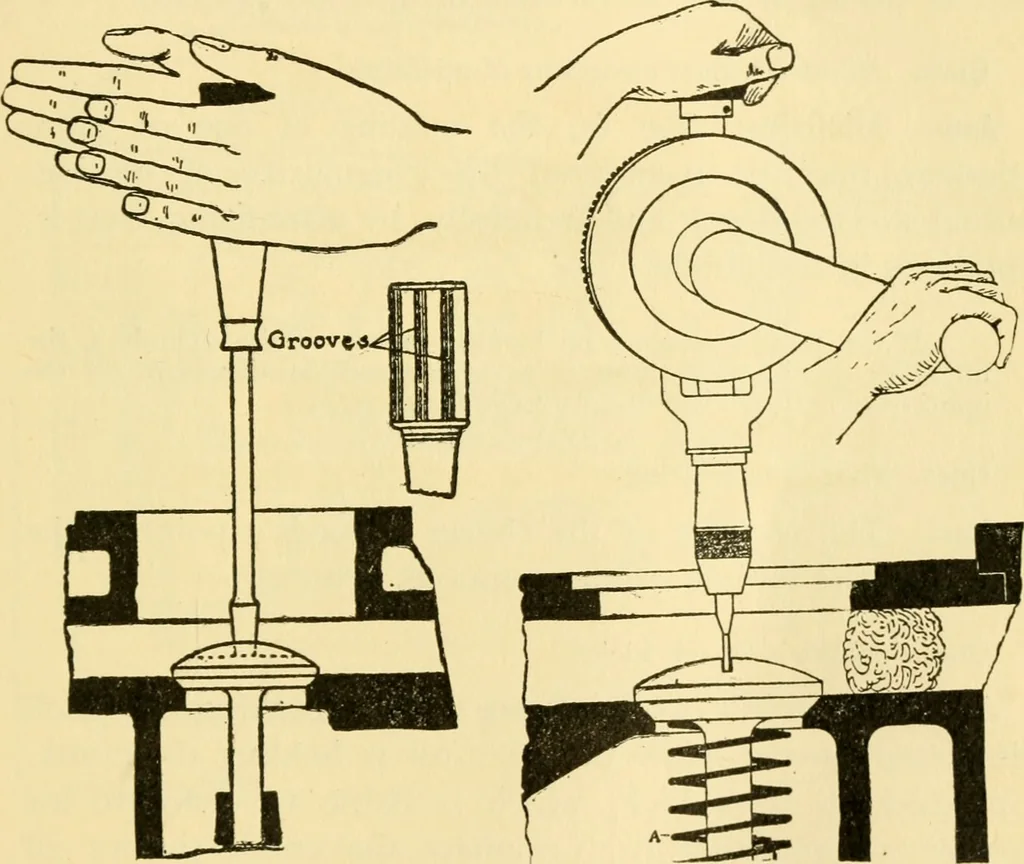

ted, will begin to race unless itbe fitted with a governor, hence, the operator should reduce thethrottle opening without delay and advance the spark so the en-gine will run at its slowest speed while the car is standing. Thethrottle lever should be pushed all the way back, this does notclose the… … Fig. 146.—Method of using a screw driver for valve grinding. A handfulof waste or a cloth is put in tlu- vah e port to protect the cylinder, and the valveface coated with a paste of line emery powder and oil and put in place. Thehandle of the screw driver is now held between the i)alii;s of the…
Automobiles
