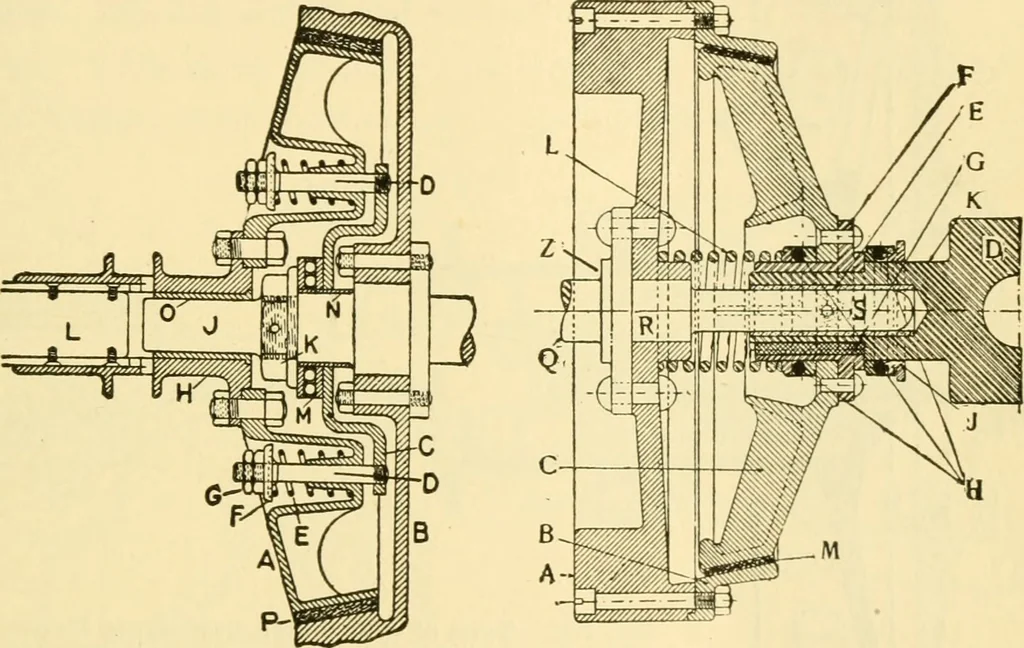

Describe a cone clutch? Ans. As shown in figs. 157 and 158, a cone clutch con-sists of two members: a dish-shaped ring, secured to theface of the fly wheel, and a truncated cone carried by a sleeve CLUTCHES 26^- sliding on the main shaft, and held in close fit by means of aspring. The first member… … Fig. 157.—External cone clutch. A, fly wheel clutch cone; B, fly wheel; C,fly wheel clutch stud plate; D, D, clutch spring studs; E, clutch spring; F,spring retainer; G, retainer lock nut; H, sliding sleeve for setting clutch; J,crank shaft end; K, crank shaft nut; L, tail shaft; M, ball thrust…
