Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 323

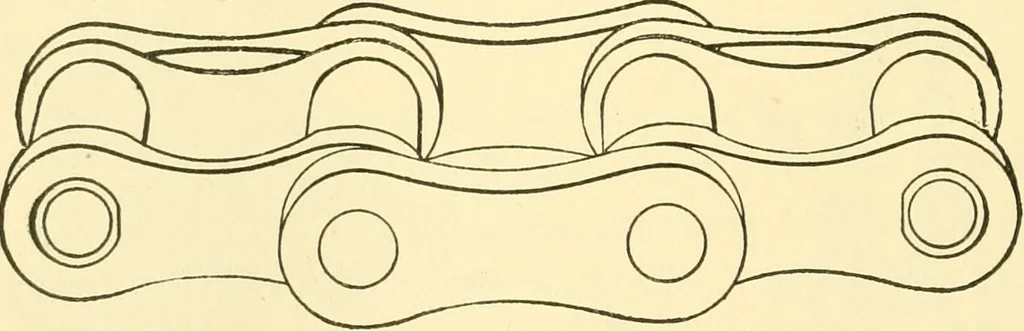

work in oil, in a dust tight case. 296 A UDELS ANSWERS Ques. What is the advantage of the chain drive?Ans, The greater portion of the weight of the drivemechanism is supported by the frame instead of the rearaxle housing; it is thus cushioned from shocks due to unevenroad. Ques. What two kinds of… … Fig. 184.—Section of a driving chain, showing arrangement of the rollersand side links. blocks before and after by side links bolted through the bodyof the block. Ques. Describe a roller chain. Ans. A roller chain is composed of a series of rollers,known as center blocks, joined by side links. Each…
