Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 370

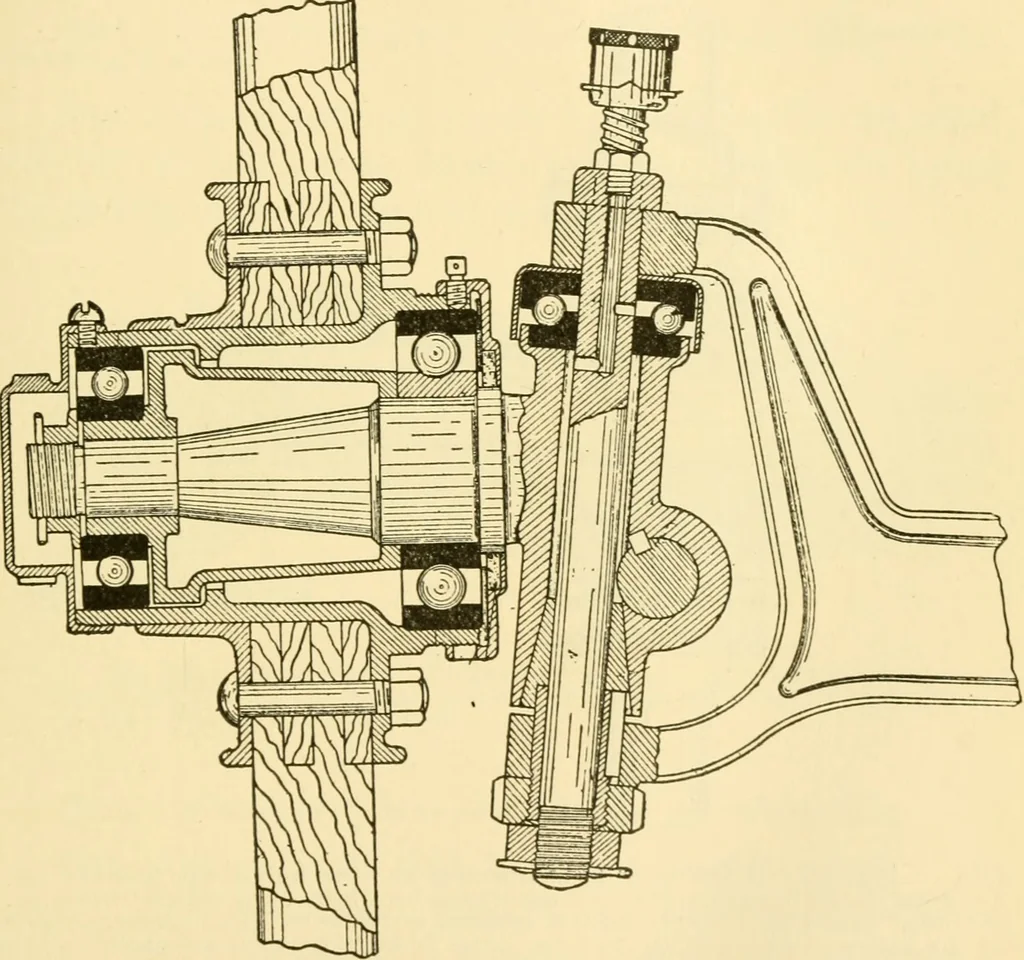

be adheredto, as it depends upon the conditions under which tlie bear-ings are to be used, just what type will give the most satis-factory service. BALL AND ROLLER BEARINGS 343 In automobile construction, the tendency is to use ball bear-ings on pleasure vehicles, and roller bearings on power… … Fig. 251.—Front swivel axle of the Chadwick automobile: view showingthe ball bearing. It will be noted that the steering axle bolt is not at rightangles with the wheel axle. It is designed this way in order that shocks shallnot be transmitted through the wheels to the gear, but will be absorbed in…
