Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 391

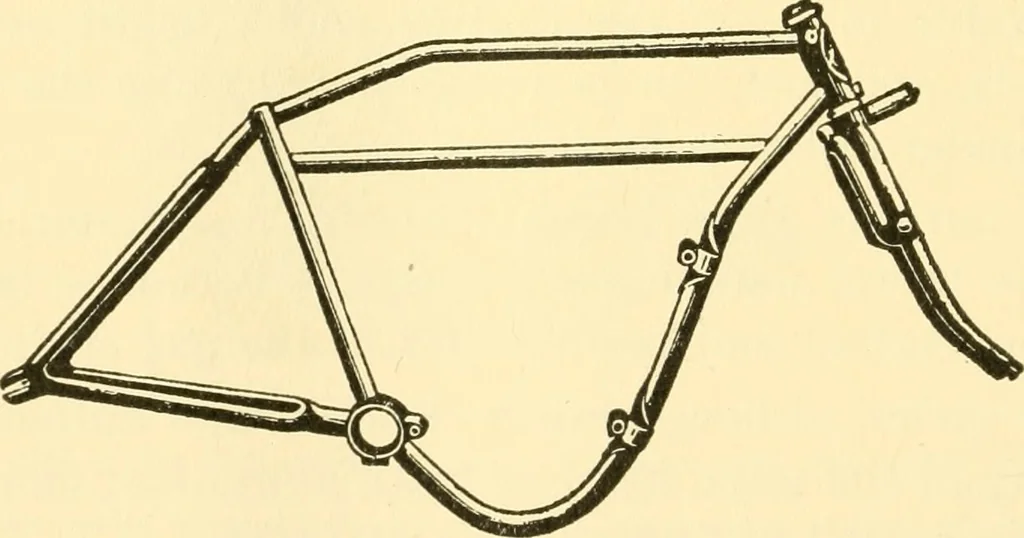

made heavier and stronger than in footpropelled machines. The tubes are made with thickerwalls, and the joints more securely reinforced. In severalmakes, the end of security is further assured by struts andtrusses, particularly at the fork on the steering post and atthe place where the engine is… … Fig. 270.—A motor cycle frame. The lower member is curved to conform<o the shape of the crank case of the engine. The fork consists of two hingedpieces held in place by a spring forming a shock absorbing device. Ques. What style of two cylinder engine is generally used ?Ans. The V twin cylinder…
