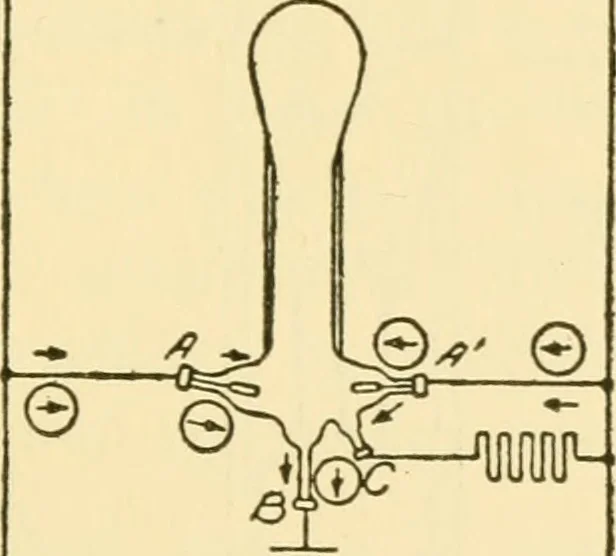

TTERIES 417 supply transformer is positive, the anode A is then positive,and the arc is free to flow between A and B. Following thedirection of the arrow still further, the current passesthrough the battery J, through one-half of the main react-ance coil E, and back to the negative terminal G of… … t® Fig. 312.—Elementary diagram of mercury arc rectifier connections. A, A,graphite anodes; B, mercury cathode; C, small starting electrode; D, batteryconnection; E and F, reactance coils; G and H, transformer terminals; J, battery. fore has been charging, now discharges, the discharge cur-rent…
