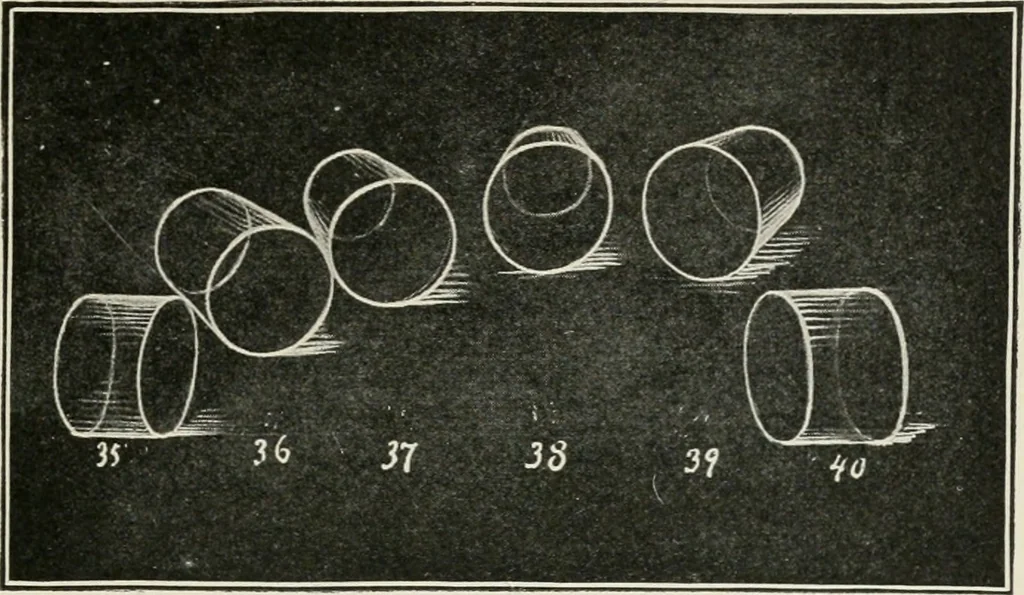

than practical, and though the end of Fig. 32 may not be aperfect circle, still because it is more convenient to teach andeasier to comprehend, we will speak of it and represent it as one. Hold the cylinder in the position of Fig. 32 and observe thatthe circle that represents the further end can be… … Between the horizontal cylinders 35 and 40 and the liorizontalreceding cylinder 38 are oblique horizontal receding cylinders 36,37 and 39, which are drawn in the same manner as the othercylinders. Sit at a table or desk and place the model in the position ofFig. 38. In the position of Fig. 36. Fig.…
