Automatic control for a high tension arc furnace (1917)
Bagley, Glen David · leaf 28

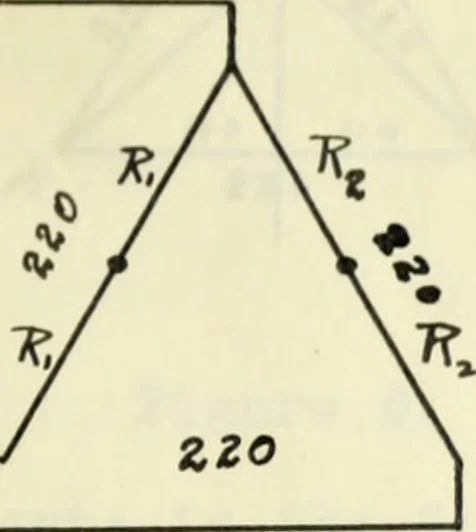

is condition the startingcurrents are unbalanced and the solution is more difficult.The condition v/hen the main switch is closed is shovm inFigure 2. For the sake of simplicity the transformer itselfis omitted from these diagrams, as its impedance is negli-gible. The resistance of the arcs is… … Figure 2. in C is thenYT times 98 cimperes, or 170 amperes. Resis- tances and R^ are gg or 2.22 ohms and are divided into two equal parts. The arc resistance, however, is introducedin all three lines approximately equally as the electrodesin all three phases are separated simultaneously. Then…
