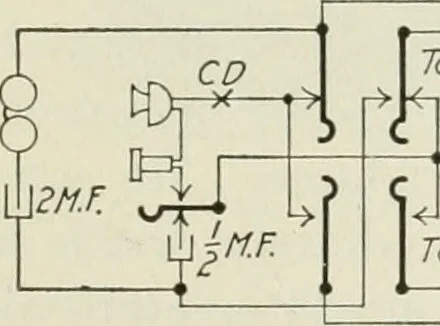

ions. line switch is removed and the private multiple opened between eachconnector bank. Each private contact is now connected through a1200-ohm coil to negative battery. From the foregoing it is evident thatseveral persons (depending upon the number of connectors) can get in online 11 at the same… … #??Z/ Telephone- Test ■t-L ±L To Test-Connector Yale Lock ~L Fig. 164.—Supervisors telephone circuit. 22 and connected to a test connector. This enables the supervisorywatchman to cut in on any line in the plant, even though it is busy.The ringer remains across line 22 at all times, therefore an…
