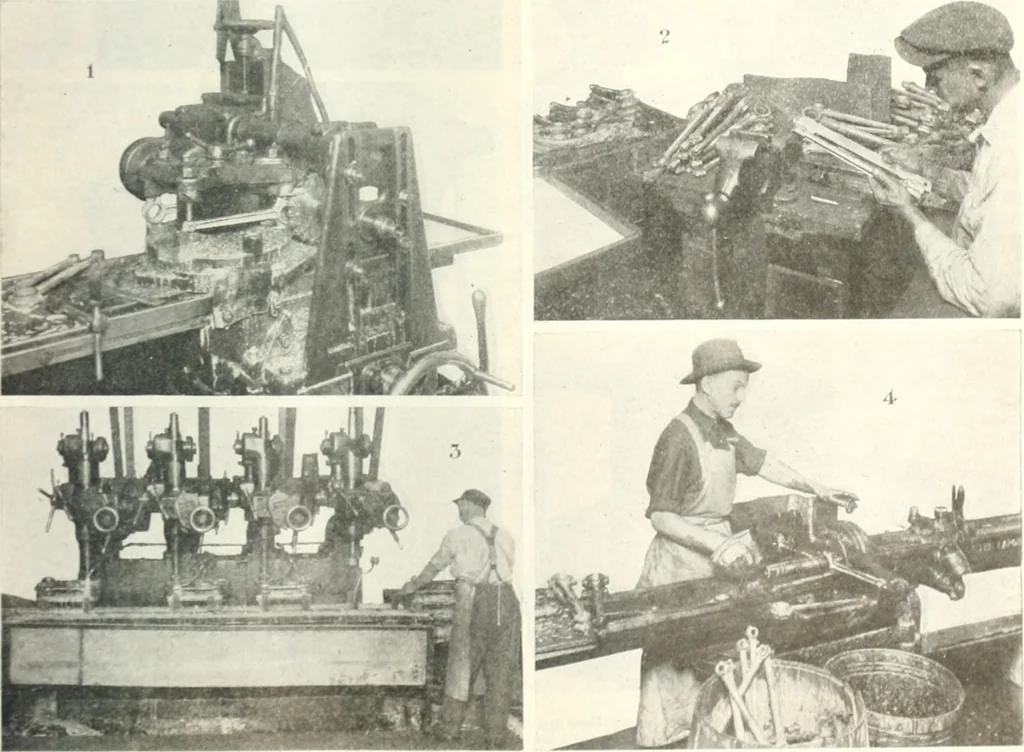

izethe importance of carefully laying out operations for con-necting rods, not only with the idea of getting the bestpossible rod for the least expenditure of time and effort, but also to make this department tune up with the otherengine manufacturing departments. The connectingrod offers an… … 1—Straddle milling evda of rods to fix width. Note the indexing fixture ukich permits rod to be swungaround. This is a Brov.-n & Sharpe mill. 2—Straightening Hupp connecting rods after primary millingoperation and before machining. Note inspection gage. .3—Four-headed Colburn drill which drills…
