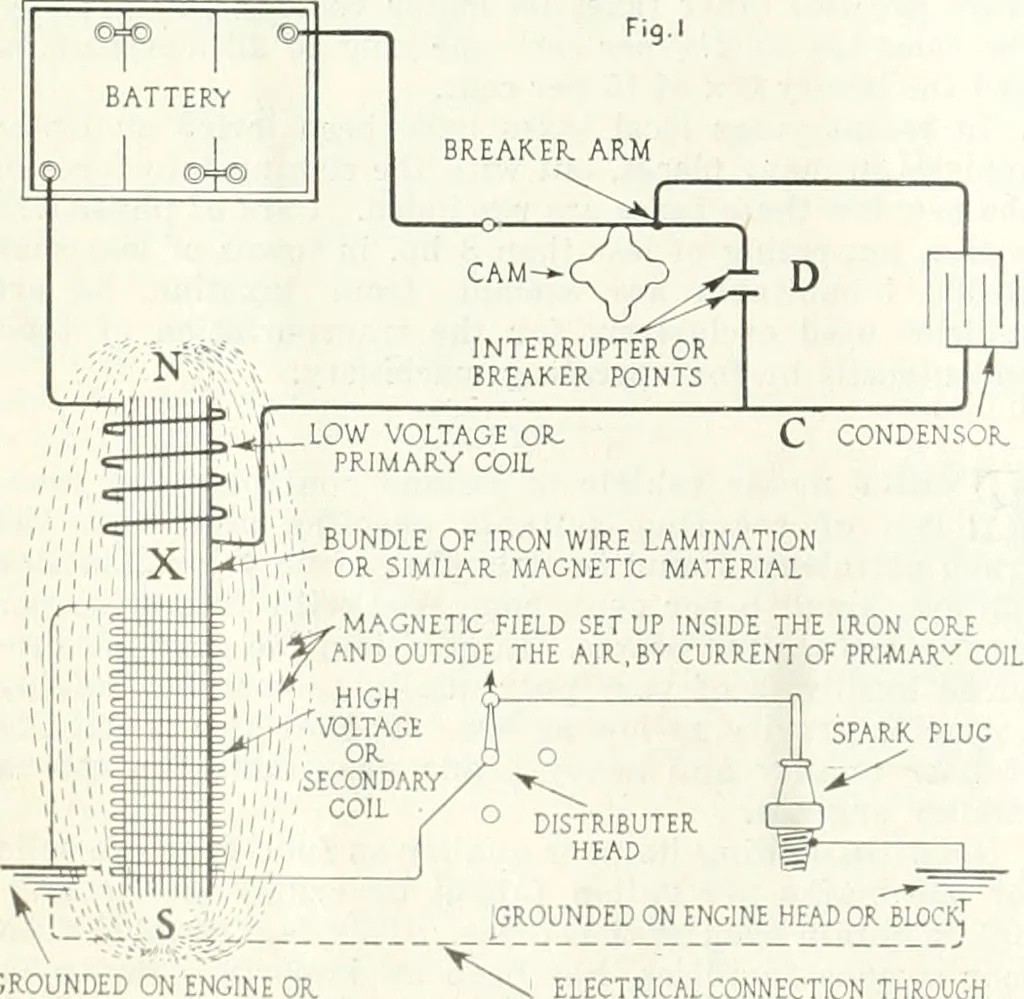

ollapses. This effect isassisted by the action of the condenser, shown at C. in Fig.1, which is connected across or in parallel with the inter-rupter points P. So connected, its function is to reducethe arc formed when the interrupter is opened by the cam,which results in two beneficial effects.… … GROUNDED ON ENGINE OR.FRAME OR. CHASSIS ^GROUNDED ON ENGINE HEAD OR BLOCK] ELECTRICAL CONNECTION THROUGHMETAL PARTS OF ENGINE OR CHASSIS Fig. 1—Schematic diagram of ignition coil ofusual standard construction stated above, improves the quality of the ignition itself. Assuming for the moment that…
