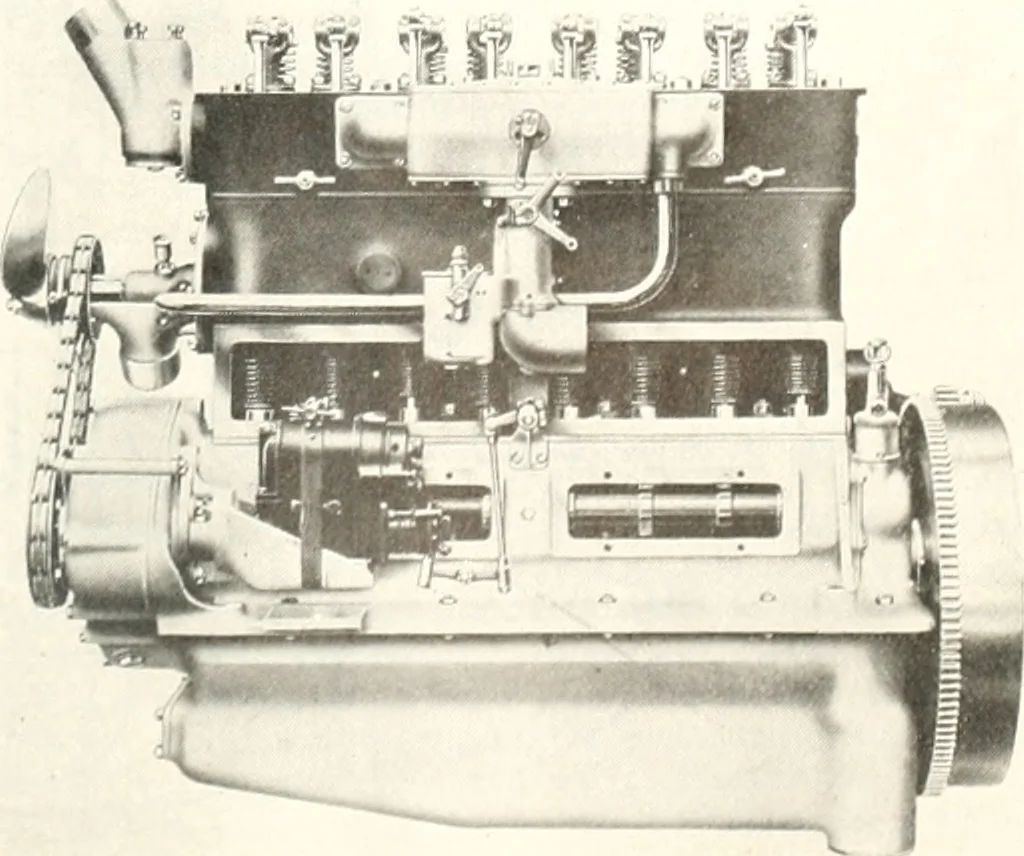

e is roughly of horse-shoe shape with a pilotshoulder to receive the gear ring, its jaw being dimen-sioned so as to slide into the web groove until it beds homewith its outer surface concentric with the crankshaft axis.The gear ring is threaded over the shaft and bolted to theflange extension and… … Inlet side of new four-cylinder Vauxhall engine 458 THE NEW VAUXHALL Automotive IndustriesSeptember 7, 1922 Careful balancing of the ciankshaft is obviously neededafter the mounting of this gear ring and flange. Engine Details The engine has a bore and stroke of 95 x 140 mm.(approximately 3% x 51/2…
