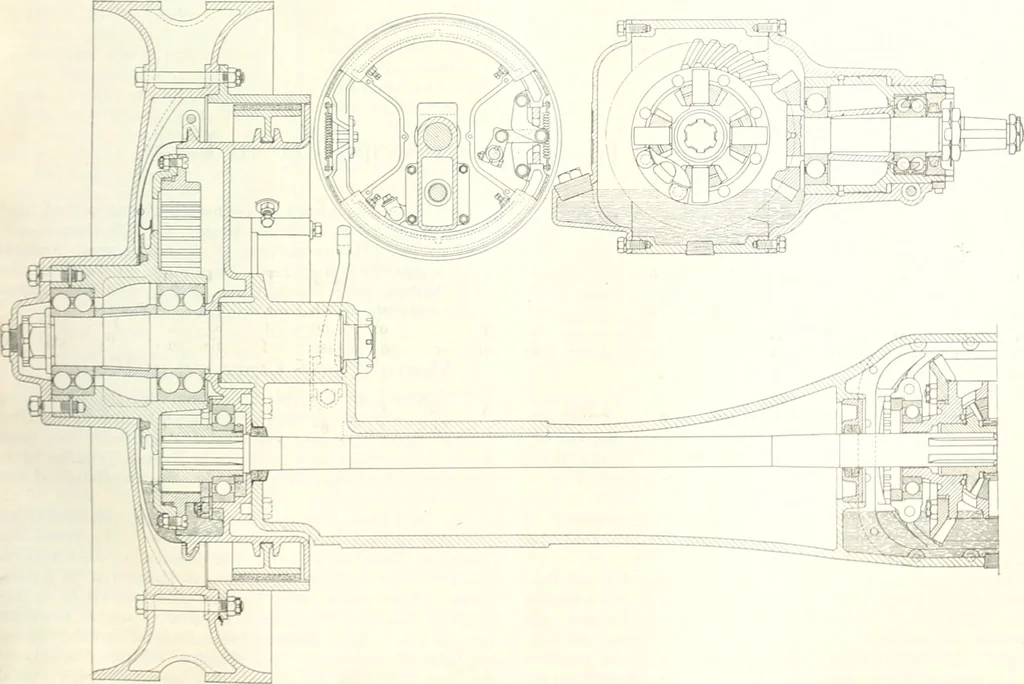

r 72-iii.tread and 511/2-11. spring centers. The differential and the spiral bevel gears, as well as thedriving pinions and internal gears, are arranged to runin heavy oil. The outer enclosure of the ring gear is in theform of a saucer shaped stamping which is clamped to therim of the brake anchor… … Sectional vie^v of Atlas motor bus internal gear cranked type rear axle 508 ATLAS BUS AXLE Automotive Industj-iesSeptember H, 1922 dirt. Oil, which is carried up by the internal gear, spillsinto a trough riveted to the upper part of the diaphragmand is returned to the lower part of the casing. Oil…
