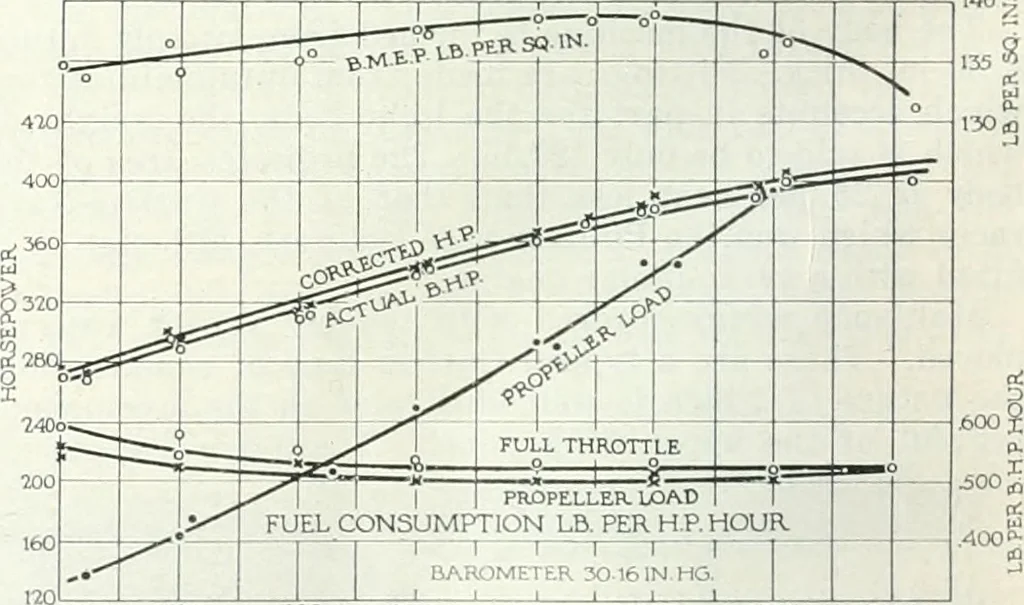

ove. The tach-ometer drive is now taken off the left camshaft. All gearshave stub-teeth. The magnetos are driven by a combina-tion flexible disk and Oldham coupling. Two flanges usedin this drive are provided with bolt holes so spaced aboutthe same bolt circle as to enable a very close angular… … Power, fuel consumption, b.m.e.p. and propeller load curves of the Curtiss Model D-12 engine with 5.3 to 1 covi]>ression ratio bearings have been altered so that only two sizes are nowused. The center bearing is Iu in. long while the otherbearings are all Ia in. The main bearings are 3 in.…
