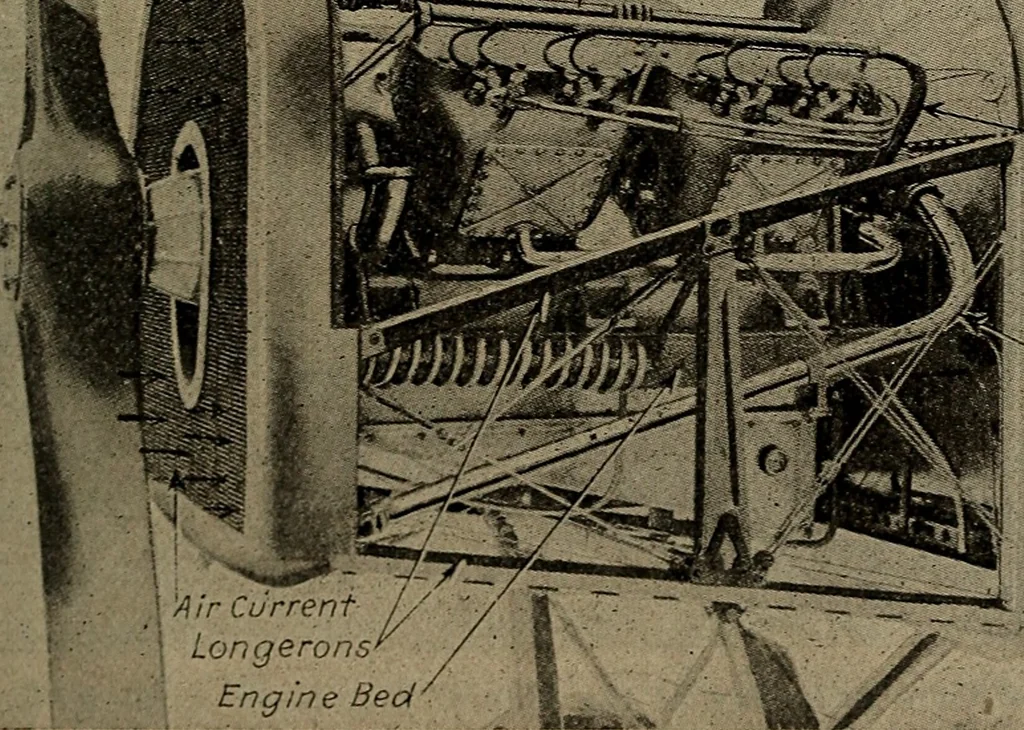

type of fan. The cellular and Cooling by Positive Circulation 225 flat tube types have almost entirely displaced the flangetube radiators which were formerly popular because theycool the water more effectively, and may be made lighterthan the tubular radiator could be for engines of thesame… … g Pipe;fromWaterJacketto Pump Pipe frpmBottom ofRadiator*toWater Pump & .ongerons^Engine Bed Pig. 83.—How Water Cooling System of Thomas Airplane Engine isInstalled in Fuselage. to the lower portion of the water jackets of the cylinder.It becomes heated as it passes around the cylinder wallsand…
