Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 321

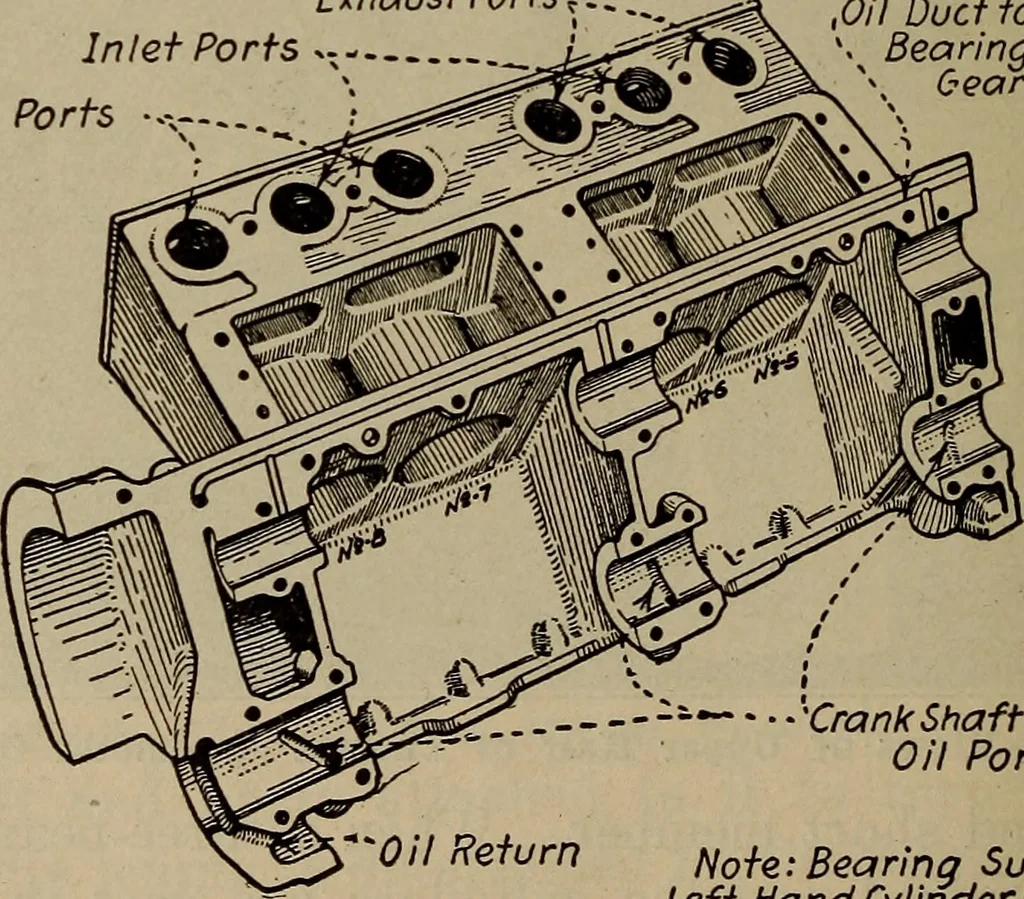

Right Hand Cylinder BlockNote: Rigidity and cleanliness of designalso ceniral inlet port locationsfor even distribution of gas Exhaust Ports ,..., Inlet PortsExhaust Ports --\ … Oil Duct to Cam Shaft \ Bearing and Front Gear Case Crank Shaft BearingOil Ports Oil Return No+e. Bearing Supports Left Hand Cylinder Block Casting Fig. 142.—Method of Constructing Eight-Cylinder Vee Engine, Possibleif Aluminum Cylinder and Crank-Case Castings are Used. Crank-Case Construction 323…
