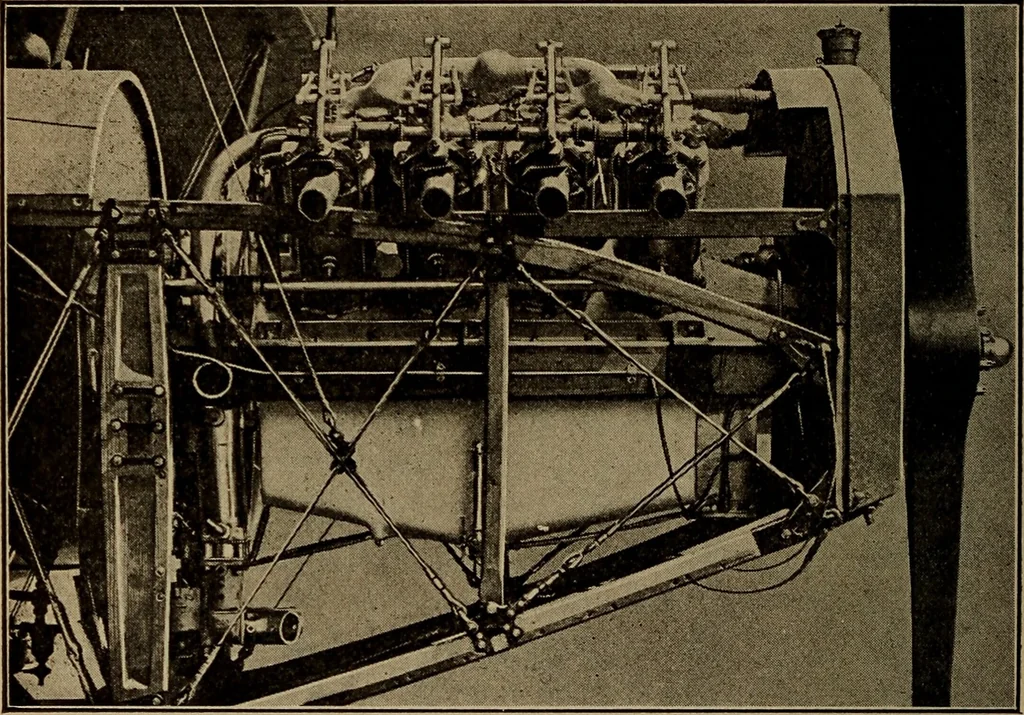

is mounted under a cowl directly behindthe motor and that it feeds the carburetor by means of a 326 Aviation Engines flexible fuel pipe. As the tank is mounted higher than thecarburetor, it will feed that member by gravity. Theradiator is mounted at the front end of the fuselage andconnected to the… … Fig. 145.—How Curtiss Model 0X2 Motor is Installed in Fuselage ofCurtiss Tractor Biplane. Note Similarity of Mounting to AutomobilePower Plant. to the sides of the fuselage and are supplied with doorswhich open and provide access to the carburetor, oil-gauge and other parts of the motor requiring…
